24
(4) "Stop/Start" key
For interrupting and resuming the charging process
Confirms a menu item or setting
(5) "State of charge"/"Battery cooled down" indicator (blue)
Depending on the setting, it signals the following battery conditions, according to
the "Display" chapter, "Additional functions" section:
Blue state of charge LED setting: signals that the state of charge has exceeded
a particular % value during the charging process.
Blue time/temperature LED setting: indicates that a battery has cooled down
and is ready for use.
On steady: after charging has finished, the set cooling time or optionally the bat-
tery temperature has been reached.
(6) "Fault" indicator (red)
On steady: the charger outputs an error. The current conditions do not allow prop-
er charge. While the red indicator is on, charging cannot take place (charging in-
terrupted). The relevant status code appears in the display.
Flashes briefly every 3 seconds: the charger outputs a warning. Charging is con-
tinued despite the adverse charging parameters. The relevant status code and the
state of charge appear alternately on the display.
(7) "Charge" indicator (orange)
Lit: during charging
Flashes: if charging has been interrupted

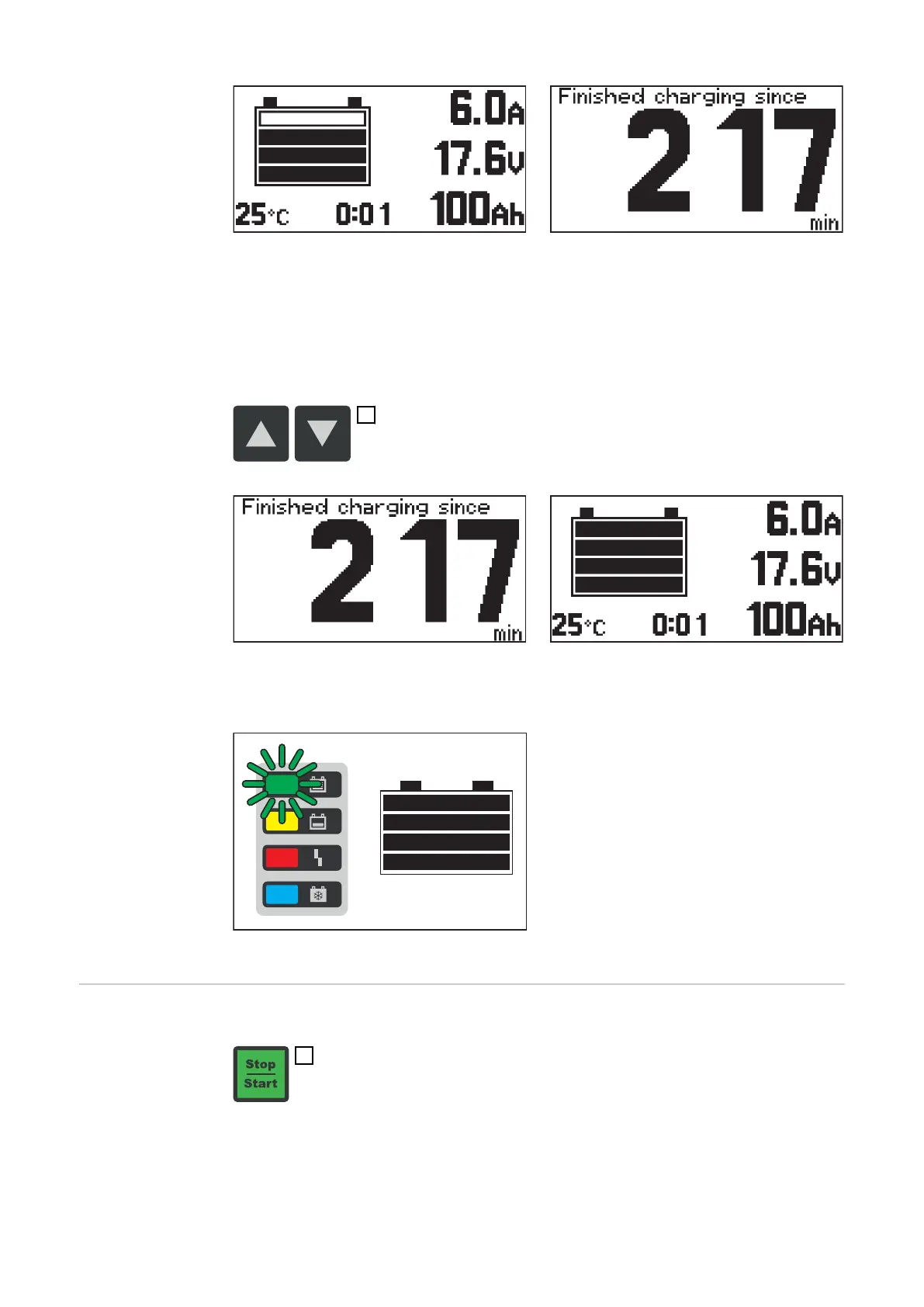

(8) "Battery charged" indicator (green)
On steady: charging ended
