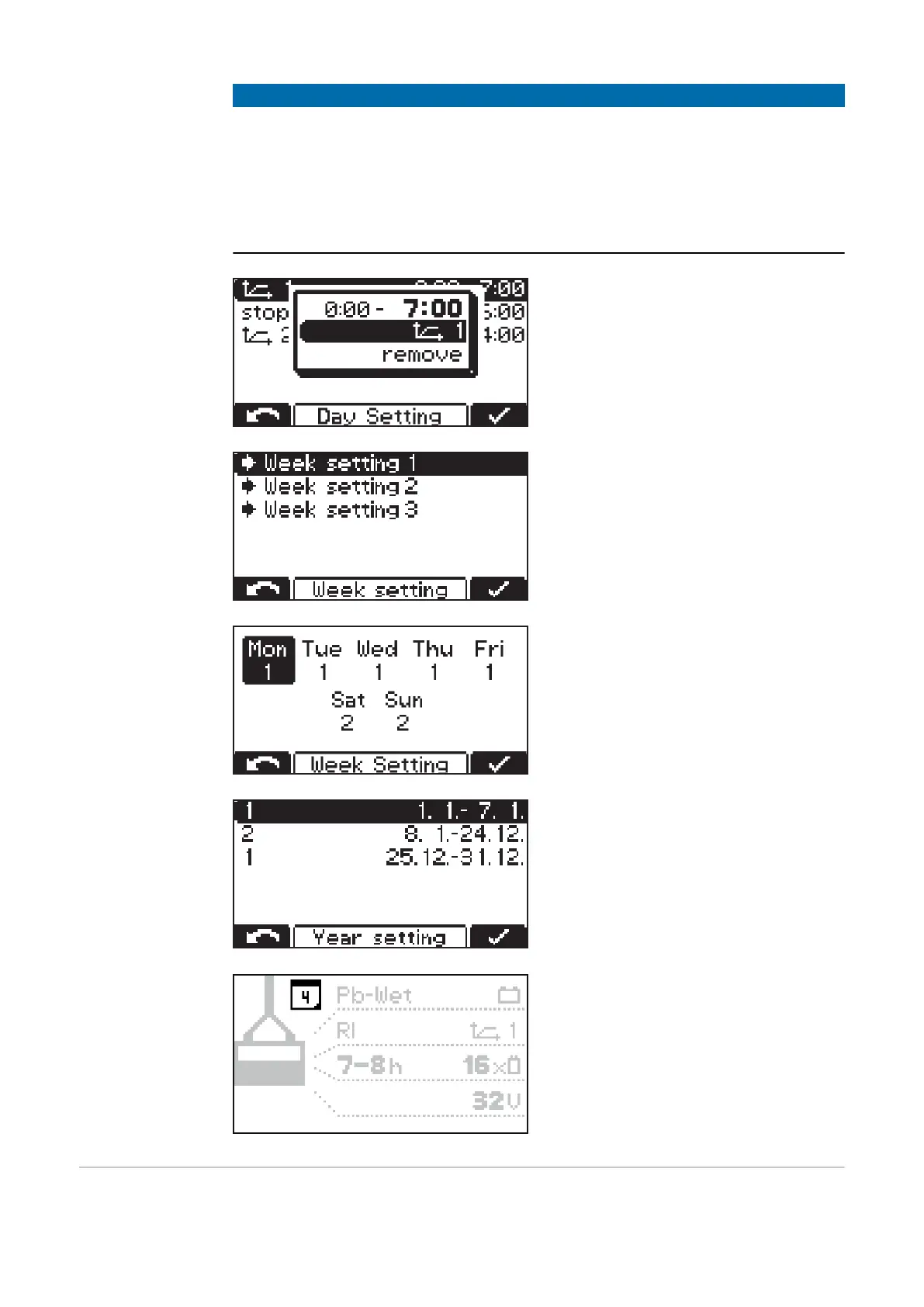

38
- Stop:
normal ON:
- Charging is interrupted when an external switch is opened
- Or when the charging plug is disconnected by opening the auxiliary contacts
normal OFF:
- Opening of an external switch or the auxiliary contacts is ignored
- Button:
The function of the "Stop/Start" key can be simulated using an external button
External lamp setting ("External lamp"):
As described under "Charging Lights" in the "Options" section, suitable signal lamps can
be connected to indicate the state of charge or operating status of the charger.
The following settings are available:
- normal (conventional signal lamps)
- RGB (LED strip)
The contrast for the remote control system can be adjusted.
The CAN protocol to be used can be set under the "CAN" menu item. This depends on the
respective application.
A tick appears in the "Status" area as soon as a CAN connection has been successfully
established. Otherwise a "x" is shown.
To view the protocol version number:
- Press the "Stop/Start" key
The "-> Statistics" area contains further information on the CAN communication.
Remote control system:
CAN:
