Setup regulations
WARNING!
Danger due to system components falling or toppling over.
This can result in serious injury and damage to property.
► After delivery, remove the device from the pallet as described in the "Removing the pal-
let" section.
► Make sure that all system components are securely in position when setting them up.
► After setup, the device must be secured to the floor or wall using the wall bracket bar.
► If using a floor bracket or wall bracket, always make sure that all the securing elements
are seated securely, including the wall bracket bar.
► Stacking the devices is not permissible; nor is placing objects on top of the devices.
► The device must be prevented from tilting during transport.
► This requires suitable securing of the load.
► During transport, the respective cables should be secured to the cable holder on the
rear of the device.

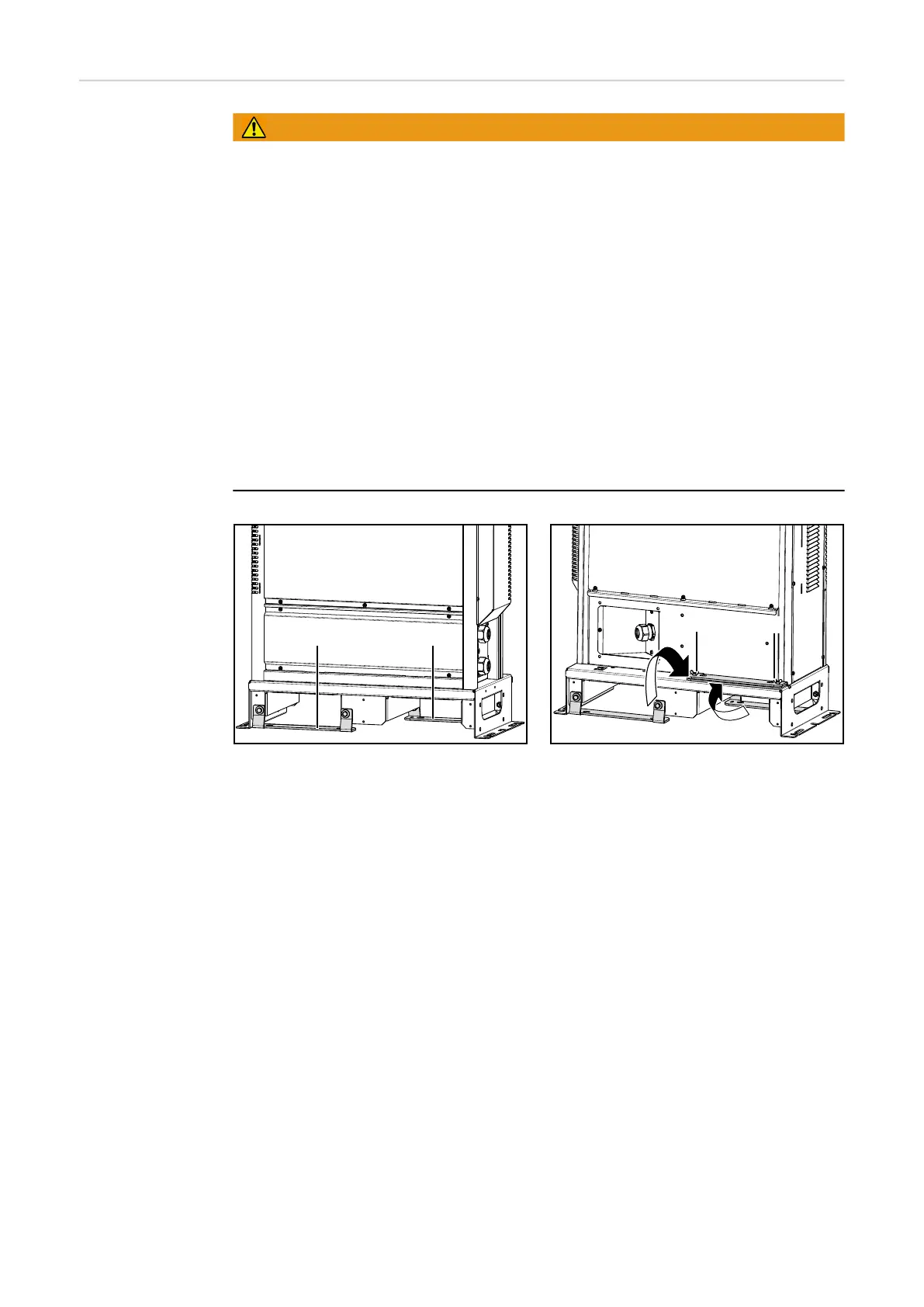

► If transporting using a platform stacking truck or manual lift truck, the tilt protections (1)
should be removed if necessary.
► The tilt protections (1) can be stored on the rear of the device and secured using wing
nuts (2).
► If required, the tilt protections (1) can be reinstalled in the intended positions.
The device is tested to "Degree of protection IP20", meaning:
- Protection against penetration by solid foreign bodies with diameters exceeding 12.5
mm (0.49 in.)
- No protection against water
The device must be set up and operated in dry, closed areas that comply with degree of
protection IP20. Exposure to wet conditions should be avoided.
The device may only be operated in a horizontal position on the base.
Cooling air
The charger must be set up in such a way that the cooling air can flow unimpeded through
the vents in the housing that are provided for that purpose. Ensure that there is always a
minimum clearance of 0.2 m (7.874 in.) around the air inlets and outlets. The surrounding
air must be free from
- Excessive dust
- Electrically conductive particles (carbon black or swarf)
- Heat sources
Cooling air is drawn in and flows out as indicated by the arrows in the following illustrations.
