External start/
stop
The external start/stop option prevents sparking if the charging plug is disconnected during
charging. Special contacts inside the charging plug register a separation from the charging
socket. These are leading contacts in relation to the main contacts. This triggers an imme-
diate stop to charging. As a result there is no wear to the main contacts, and this arrange-
ment safeguards more effectively against an oxyhydrogen explosion.

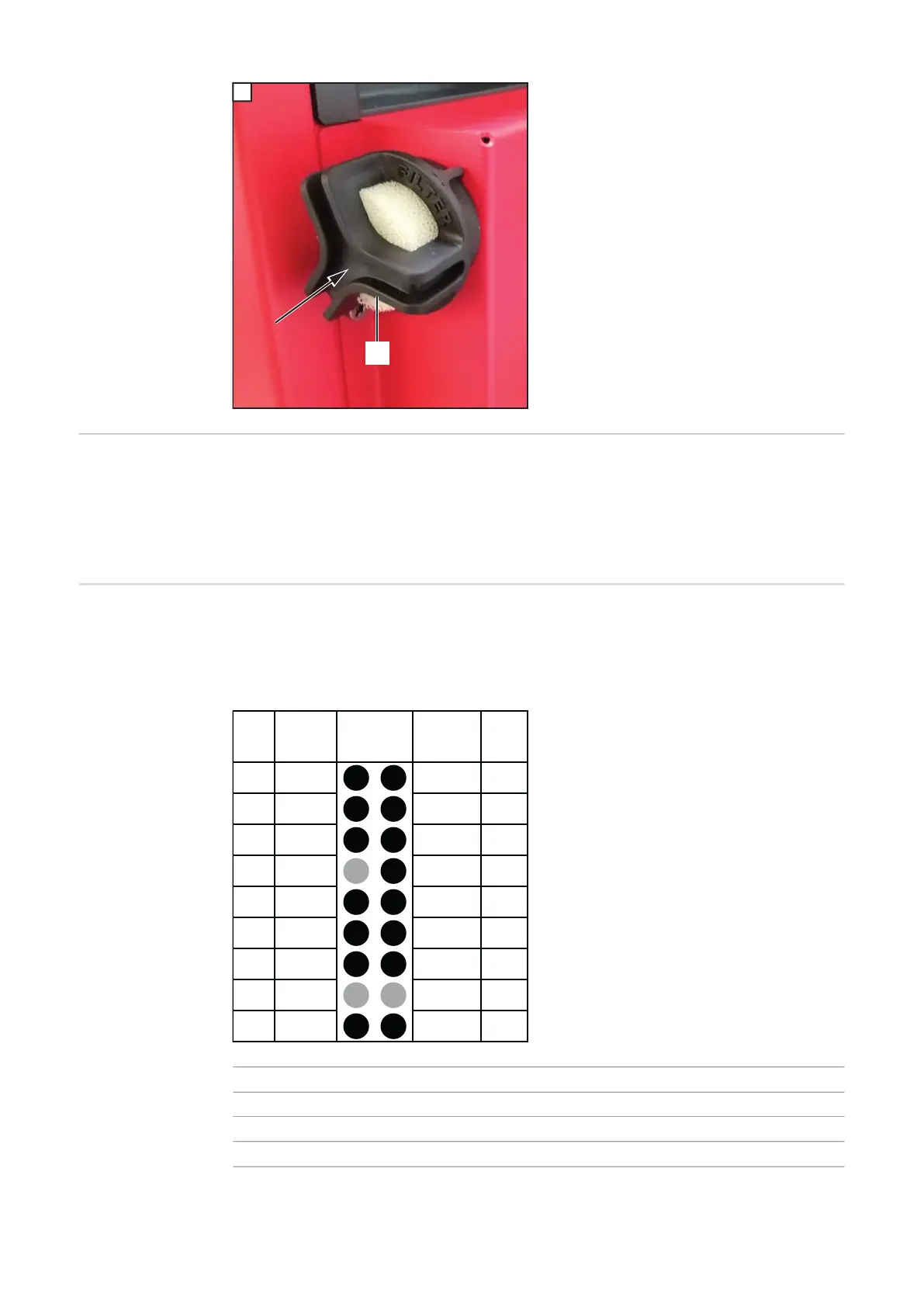

Charging lights Suitable external lamps can be connected to the connections inside the device as illustrat-
ed in order to indicate the state of charge or operating status of the charger. Each external
lamp must have a working voltage of 13 V, and the total current drawn by all the external
lamps must not exceed 0.5 A.
Connections for the charging lights on
the option plug
3
17 G / 2 13V / 1
Y / 3 R / 4
B Dete
C2 G
C1 G 13V O
C1 L C2 L
C1 H C2 H
- St + St
Pin Pin
Plug
Code
Plug
Code
Plug
18p
15
13
11
9
7
5
3
1
18
16
14
12
10
8
6
4
2
Pin Function Colour
18 13 V power supply.
17 Battery is fully charged. Green
16 An error has occurred (common error). Red
