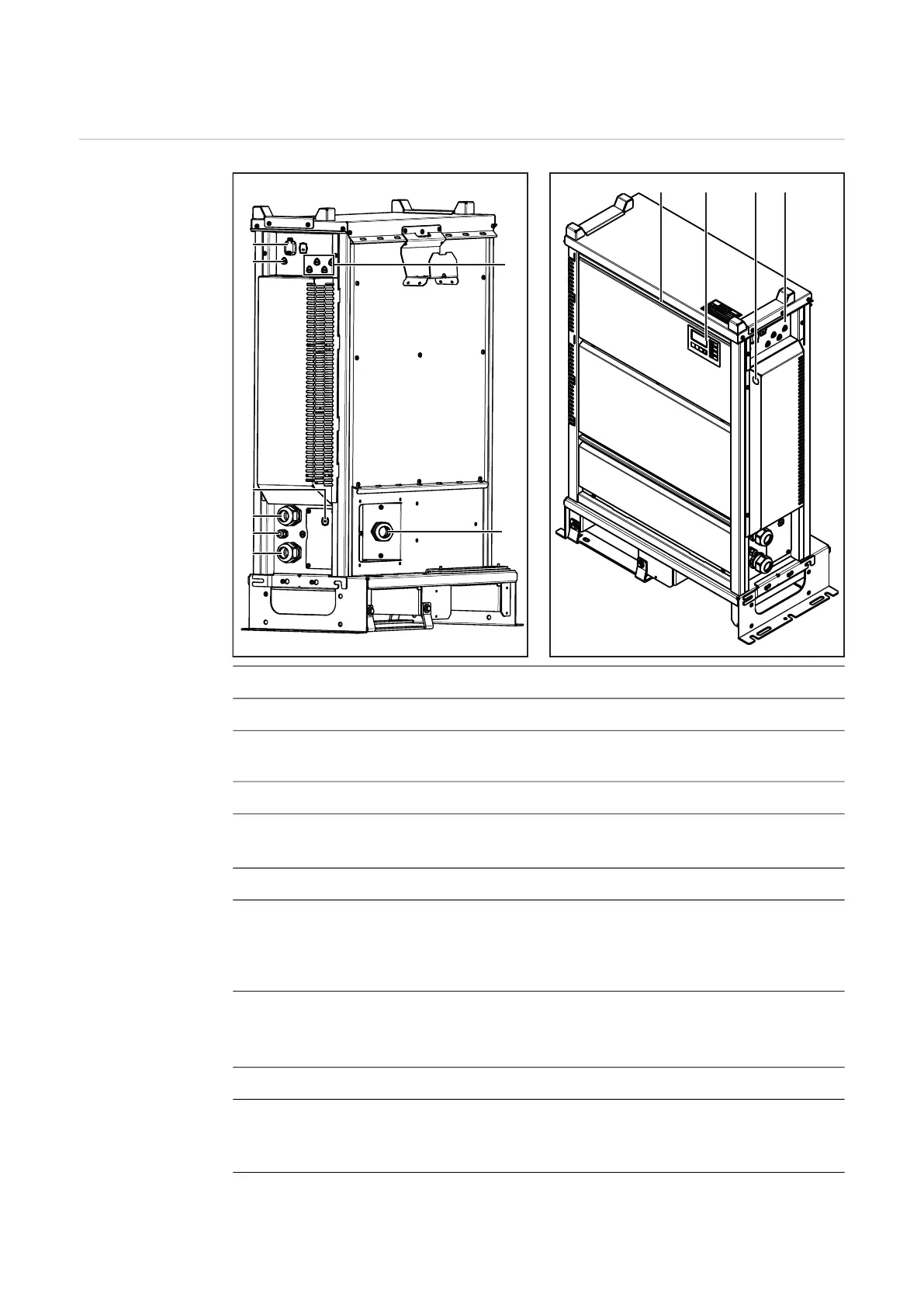

Control elements and connections
Controls and con-
nections
No. Function
(1) (+) Charging lead
(2) Position for the external start/stop option or temperature-controlled charg-
ing option.
(3) (-) Charging lead
(4) Position for the internal electrolyte circulation option.
Compressed air outlet
(5) Position for the remote control system or 13 V charging lights options.
(6) USB port
The USB port allows a USB flash drive to be used to update the device and also to
log the charging parameters while charging is in progress. The maximum supply
current is 0.5 A.
(7) Positions for the relay-related options.
(e.g. Aquamatic control)
More information can be found in the "Options" chapter.
(8) Mains cable
(9) Optional LED strip
Lights up in different colours depending on the state of charge, as explained in the
"Control panel" section
(10) Control panel
(1)
(2)
(3)
(4)
(8)
(6)
(7)
(5)
(9) (12)(11)(10)
