Fronius Selectiva Series - Mounting Options; Floor and Wall Mounting

19
EN
Fitting to the floor
Wall mounting
Drill bore holes (1) of the correct size
for the selected wall plugs and screws.
If the surface allows, the SW10 screws (3)
and washers (4) used for storing the wall
bracket bar can be used, as shown in the il-
lustration below.
If this is not possible, other suitable screws
and washers should be used.

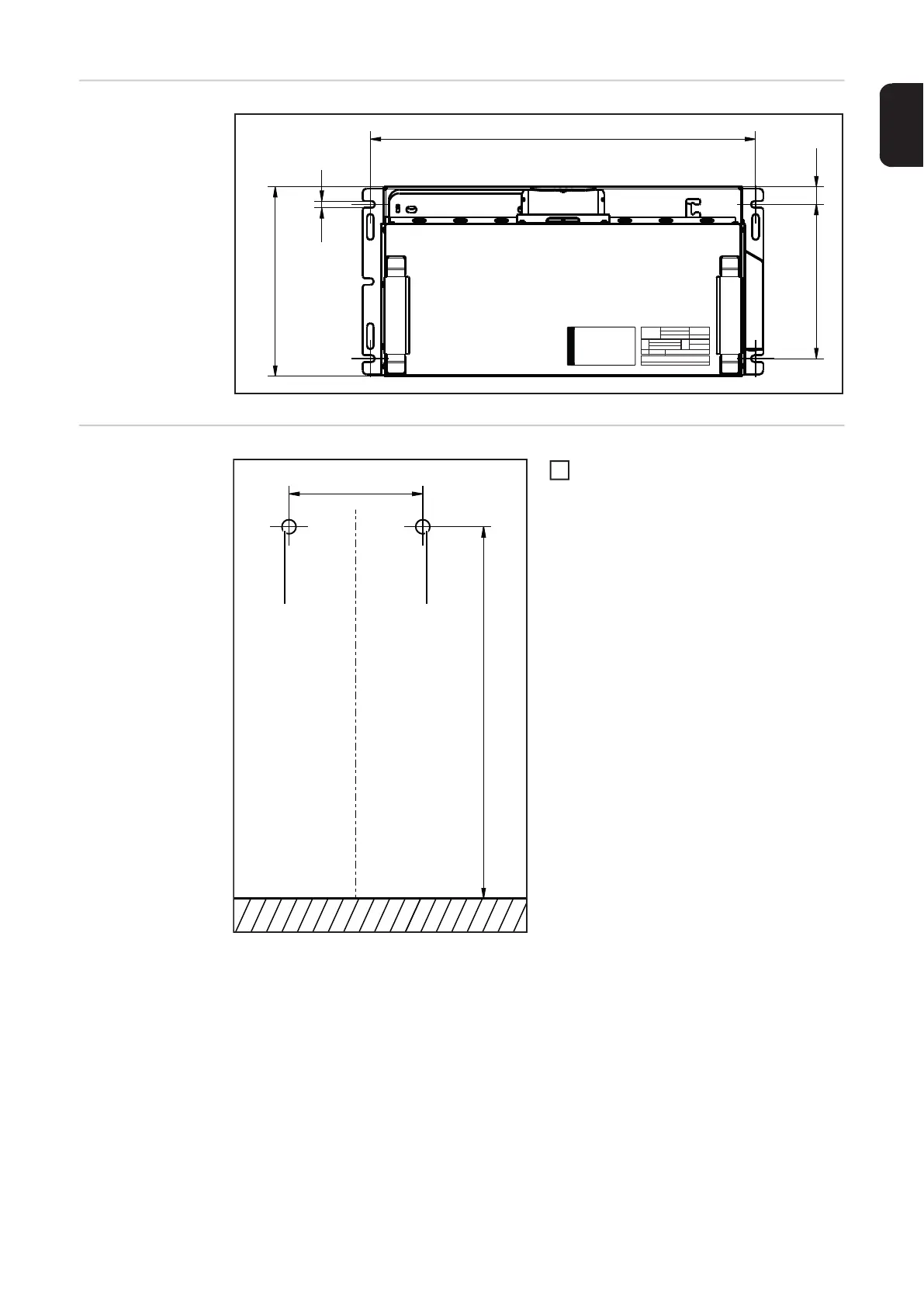

750 (29.53)mm (in.)
369 (14.53)
13
(.51)
35
(1.38)
300
(11.81)
Center
240 (9.45)
mm (in.)
950 (37.4)
(1) (1)
