Display
Overview of
modes
The device has the following modes:
No. Function
(1) Standard mode
In standard mode the display shows the charging parameters.
(2) Statistics mode
Visualises the frequency of the device operating modes and shows the total num-
ber of charging actions. Also shows an overview of the total and average Ah pro-
duced and energy consumed per charge.
(3) History mode
Provides information on the parameters for all the stored charging processes.
(4) Configuration mode
Configuration mode enables all the settings for the device and the charging pro-
cess to be adjusted.
(5) USB mode
USB mode enables a device to be updated, device configurations to be saved and
loaded, and the charging parameters to be recorded during the charging process -
all using a USB flash drive.
As long as a battery is connected to the charger, the charging process can only be inter-
rupted and resumed using the "Pause/Start" key. Display modes can be changed using the
"Menu" key as described in the following sections that explain the individual modes, but
this is only possible when there is no battery connected to the charger.
During a pause in the charging process the menu selection is available, however only in a
limited form. In this case the modes described below are available as follows:
Statistics mode and history mode remain unrestricted.
In configuration mode the following data is available:
- Date and time
- Device serial number
- Hardware version and serial number
- Software: main software, secondary software, primary software and characteristic
block version
In USB mode all options except for "Update" and "Load configuration" are available.

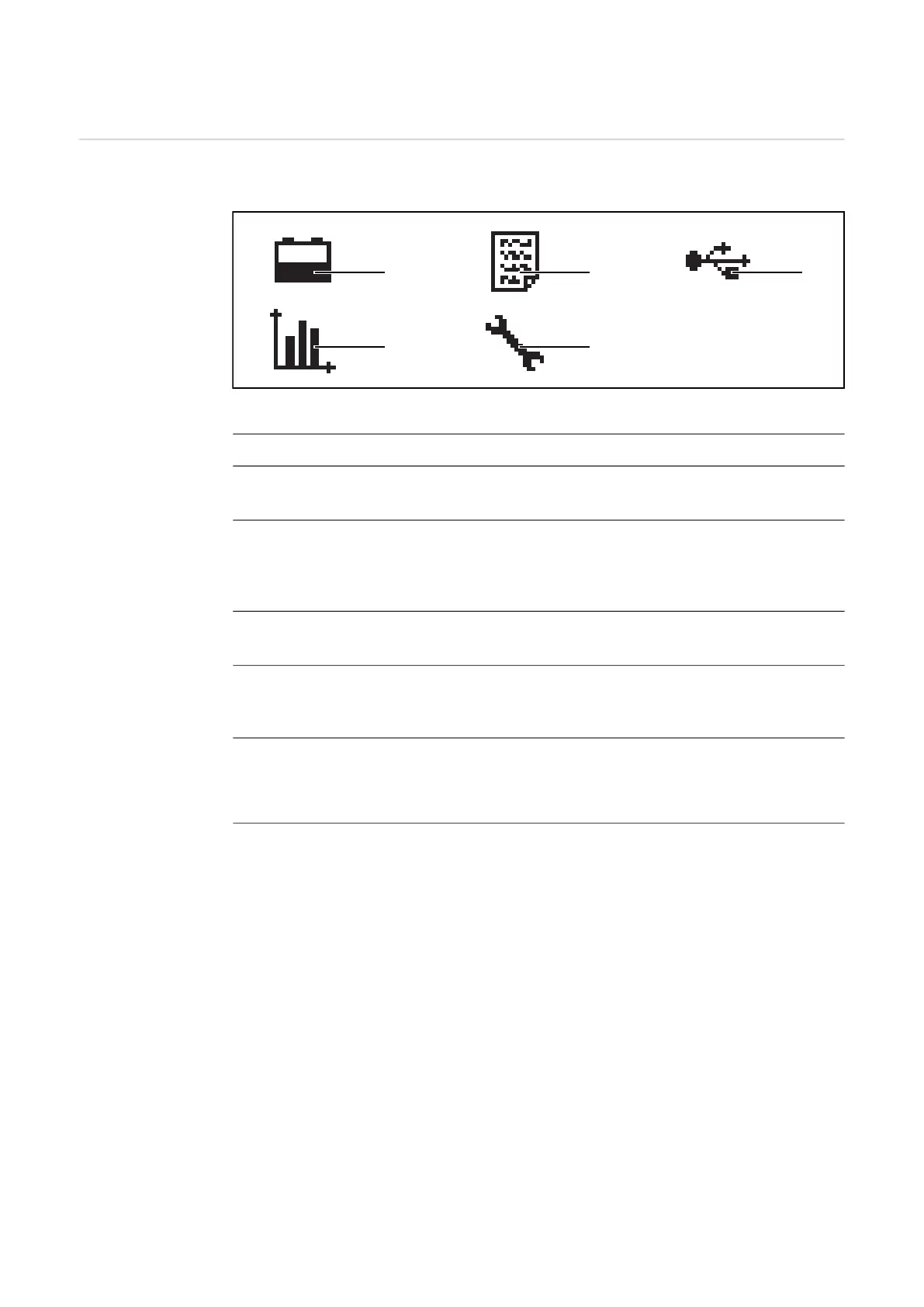

(1)
