48

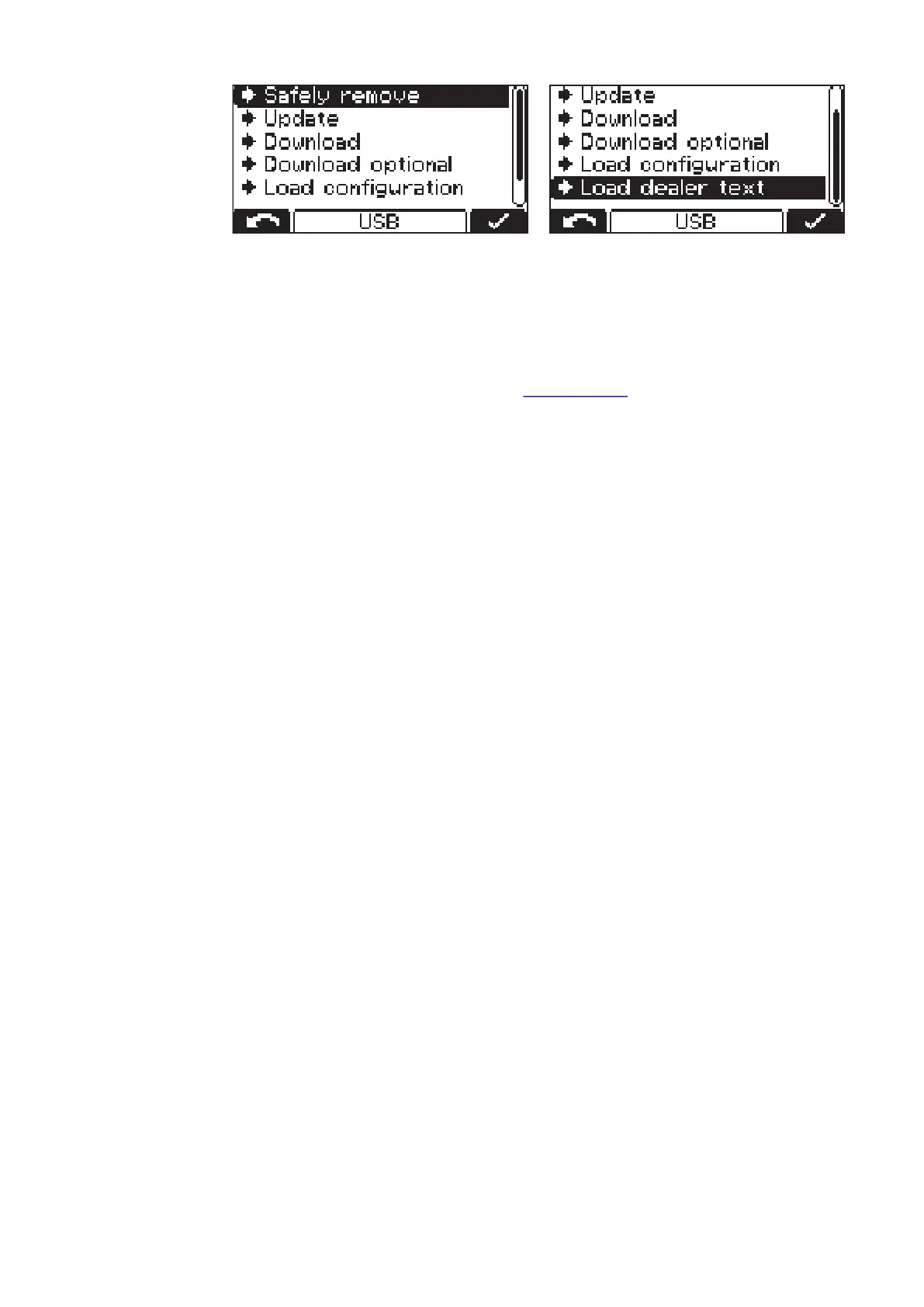

Safely remove
- Safely remove the USB flash drive as soon as the desired action has been completed.
Update
- A list of the suitable update files stored on the USB flash drive opens.
- Select and confirm the desired file in the same way as scrolling through the settings.
- Do not change the automatically assigned file names of the update file!
- The latest firmware is available in the Download area
of the Fronius website.
- The firmware installation instructions are included in the download’s zip file.
Download
- The data relating to the logged charging parameters stored in the device's datalogger
is saved to the USB flash drive for the I-SPoT VIEWER.
- Additionally, events as well as the device settings and user curves (configuration) are
saved.
- The following time ranges can be selected for the datalogger:
1 month
3 months
Everything
Since last time
Download optional
The following options are available:
- I-SPoT VIEWER
The logged data is saved in the same way as for the "Download" function, but saving
only the I-SPoT VIEWER data.
- Save datalogger
The logged data is saved in the same way as for the "Download" function, but is saved
as “csv” files rather than in the I-SPoT VIEWER format.
(Automatically created folder structure for the “.csv” files”: *
Fronius\<device serial number>\Charges\<yyyymmdd>\<hhmmss.csv>)
- Save events.
Events are saved to the USB flash drive.
- Save configuration.
The device settings are saved to the USB flash drive.
Load configuration
- Loads a suitable device configuration stored on the USB flash drive on the device.
Load dealer text
- A text file can be loaded from the USB flash drive that is displayed as soon as the de-
vice enters an error state.
- The text file can, for example, contain the contact details of the dealer.
- The file must be saved on the USB flash drive as a ".txt" file in "unicode" format.
- The file name must be "dealer.txt".
- The number of characters is restricted to 99.
* If a USB flash drive is connected while charging is in progress, the csv files are
saved directly to the USB flash drive. In this case, the folder structure is also cre-
ated automatically and differs due to the presence of the "Datalog" folder instead
of the "Charges" folder.
