Shielding gas setup menu

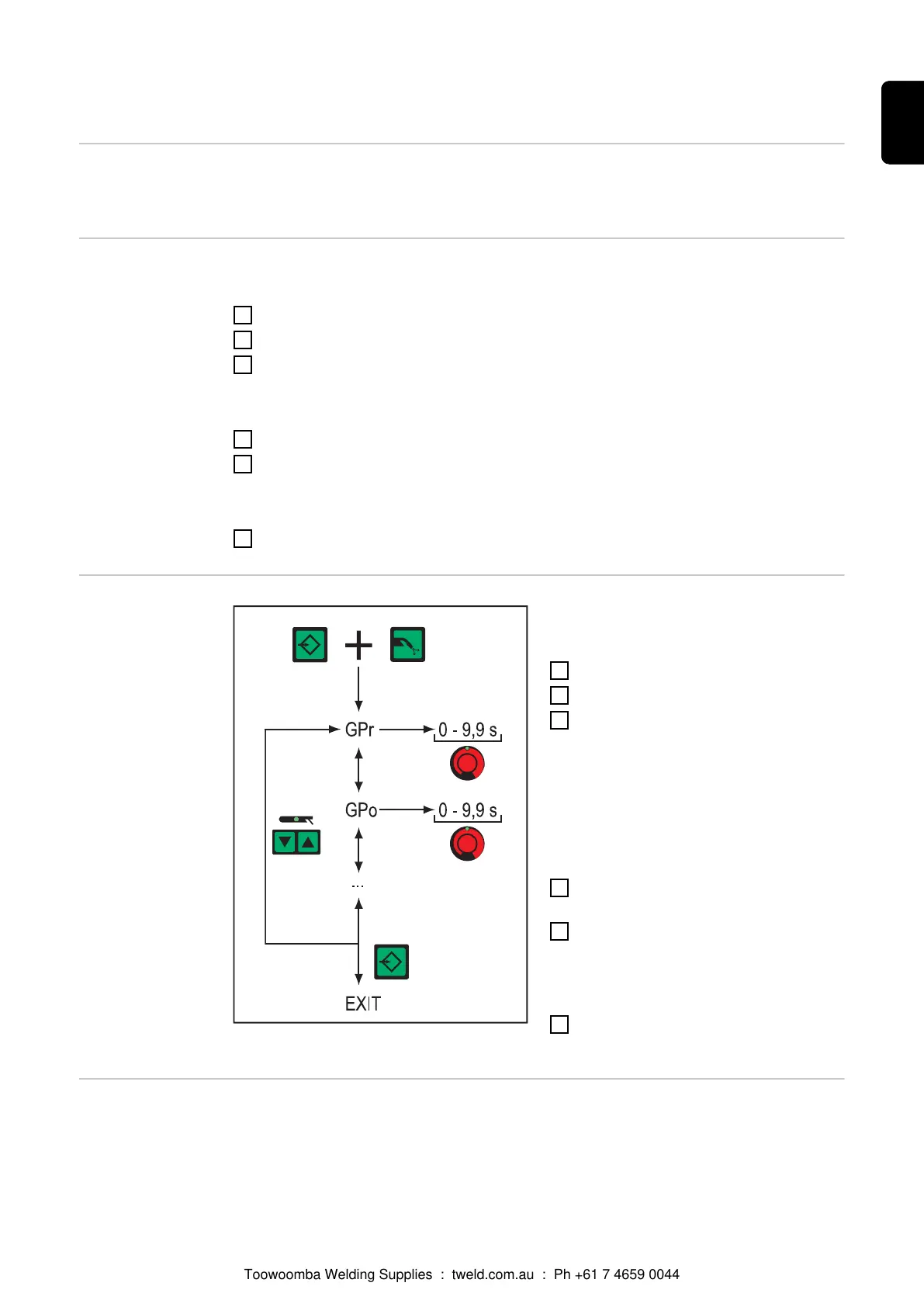

General The Protective gas shield setup menu provides easy access to the protective gas shield
settings.
Protective gas
shield setup
menu for the
standard control
panel
Opening the Protective gas shield setup menu
1
Press and hold the Store button
2
Press the Gas test button
3
Release the Store button
Changing welding parameters
4
Use the Material button to select the desired parameter
5
Alter the parameter value using the Mode button
Exiting the Setup menu
6
Press the Store button
Protective gas
shield setup
menu for the
Comfort, US,
TIME 5000 Digital
and CMT control
panels
Protective gas shield setup menu: Overview
Opening the Protective gas shield
setup menu
1
Press and hold the Store button
2
Press the Gas test button
3
Release the Store button
The power source is now in the Pro-
tective gas shield setup menu - the
last parameter that was selected is
displayed.
Changing welding parameters
4
Use the Process button to select the
desired parameter
5
Use the adjusting dial to change the
parameter value
Exiting the Setup menu
6
Press the Store button
Welding paramet-
ers in the Protect-
ive gas shield
setup menu
"Minimum" and "maximum" are used for setting ranges that differ according to power
source, wire-feed unit, welding program, etc.
139
EN
