Fronius TransPuls Synergic 5000 User Manual

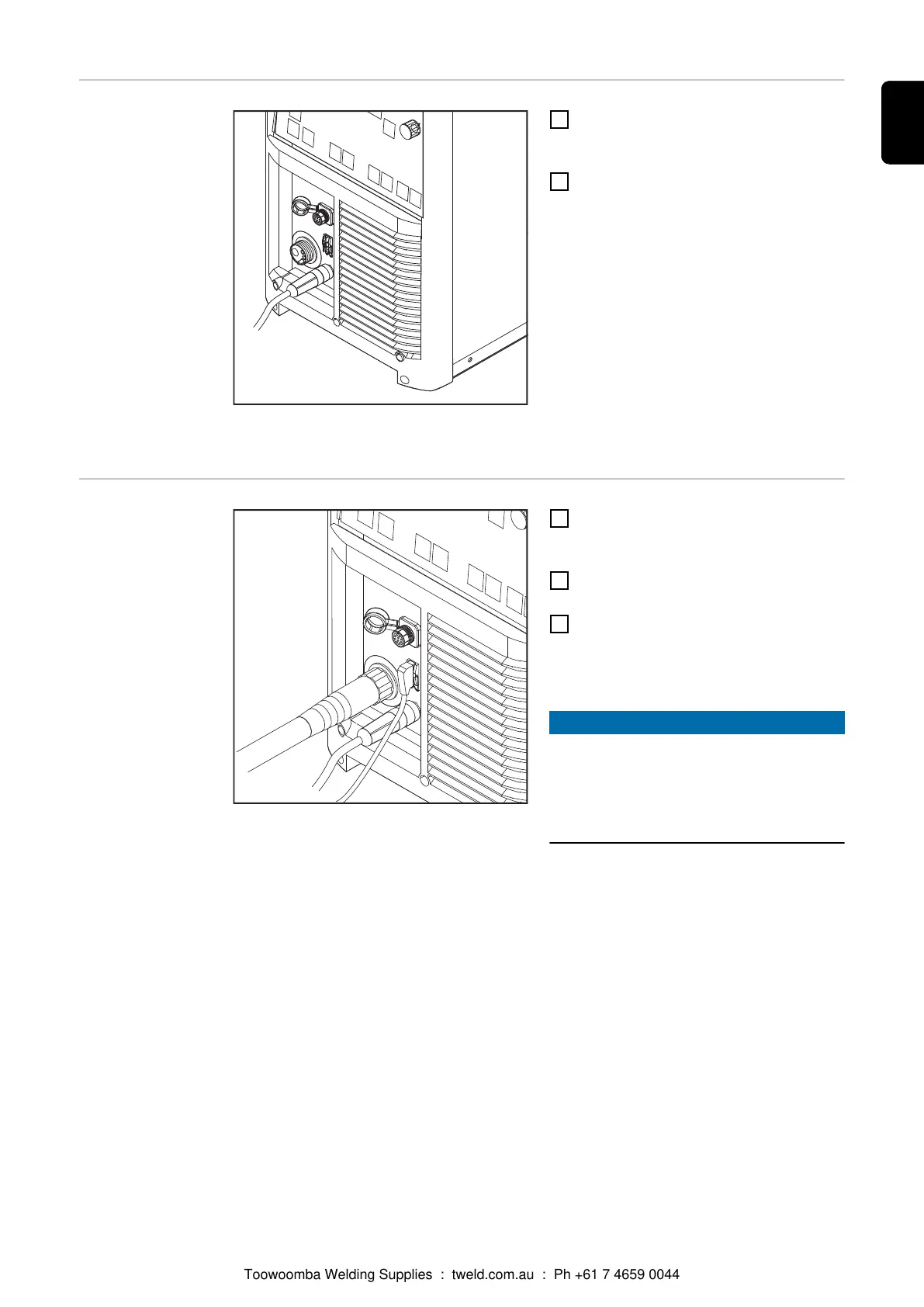

Establishing a
ground (earth)
connection
Connecting the grounding (earthing) cable to the TPS
2700
1
Plug the grounding (earthing) cable
into the (-) current socket and twist to
fasten it
2
Use the other end of the grounding
(earthing) cable to establish a connec-
tion to the workpiece
Connecting the
welding torch
Connecting the welding torch to the TPS 2700
1
Check that the torch is correctly and
completely tooled up. Insert it - infeed
tube first - into the torch connection
2
Tighten the union nut by hand to fix
the torch in place
3
Plug the control plug of the welding
torch into the torch control connection
and latch it in place
NOTE!
When altering the length and/or cross-
section of the welding torch hosepack,
measure the welding circuit resistance
r and the welding circuit inductivity L
(see "Further settings").
83
EN
