Calibrating push-pull unit
General The push-pull unit must be calibrated before it is started up for the first time and
whenever the wirefeed software is updated. If the push-pull unit is not calibrated, stand-
ard parameters will be used - which may lead to an unsatisfactory welding result.
Calibrating the
push-pull unit -
overview
(1)
(2)
(3)
(4)
(5)
(6)
(9)
(7)
(10)
(11)
(8)
(13)
(14)
(16)
(15)
(12)

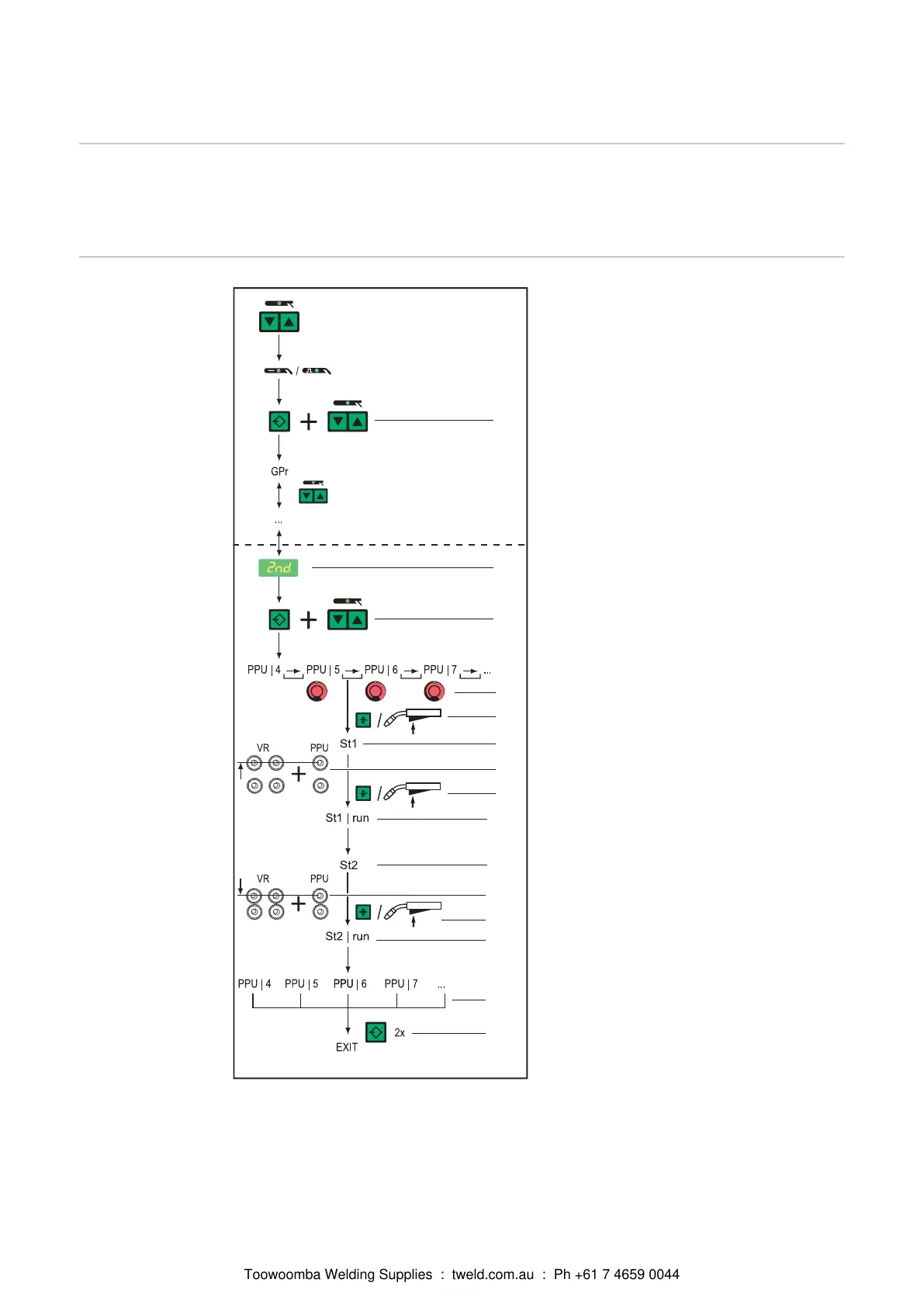

Calibrating the push-pull unit using the Comfort con-
trol panel: Overview
(1) Access Setup menu: Level 1
(2) Select “Parameter 2nd”
(3) Press and hold the Store button
Press the Process button
Release the Store button
(4) Select the “PPU” function
(5) Use the adjusting dial to select the
corresponding push-pull unit
(6) Press the Feeder inching button or
the torch trigger ...
(7) ... “St1” is shown on the display
(8) Disengage the drive units
(9) Press the Feeder inching button or
the torch trigger ...
(10) ... “St1 | run” is shown on the dis-
play
(11) ... “St2” is shown on the display
(12) Engage the drive units
(13) Press the Feeder inching button or
the torch trigger ...
(14) ... “St2 | run” is shown on the dis-
play
(15) The calibration operation on the
push-pull unit is finished
(16) Press the Store button
