Fixing the strain-
relief device in
place
1
2

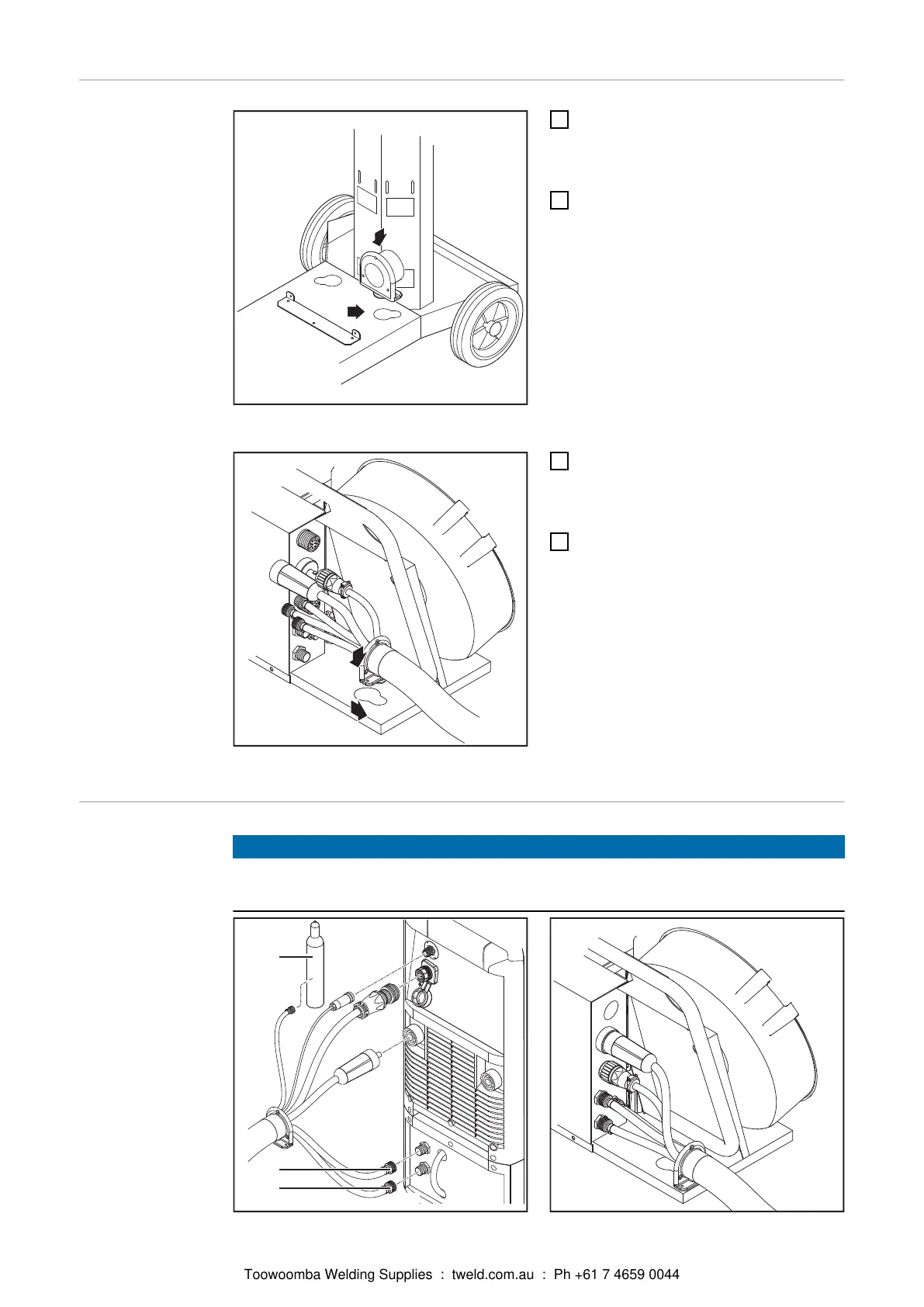

Fixing the strain-relief device to the trolley
1
Introduce the pin on the power source
strain-relief device for the intercon-
necting‑hosepack into the opening
provided in the base of the trolley.
2
Use two screws supplied with the
interconnecting hosepack to fasten the
strain-relief device to the base of the
trolley.
A strain-relief device is not provided in
the case of 1.2 m (4 ft.) interconnect-
ing hosepacks.
2
1
Fitting the strain-relief device to the wire-feed unit
3
Introduce the pin on the wire-feed unit
strain-relief device for the intercon-
necting hosepack into the opening
provided in the wire-feed unit.
4
Use two screws supplied with the
interconnecting hosepack to fasten the
strain-relief device to the wire-feed
unit.
Connecting the
interconnecting
hosepack
NOTE!
There is no cooling unit present in the case of gas-cooled systems.
There is no need to attach the water connections in the case of gas-cooled systems.
(1)
(2)
(3)
90
