3.2 MACHINE COMPONENTS

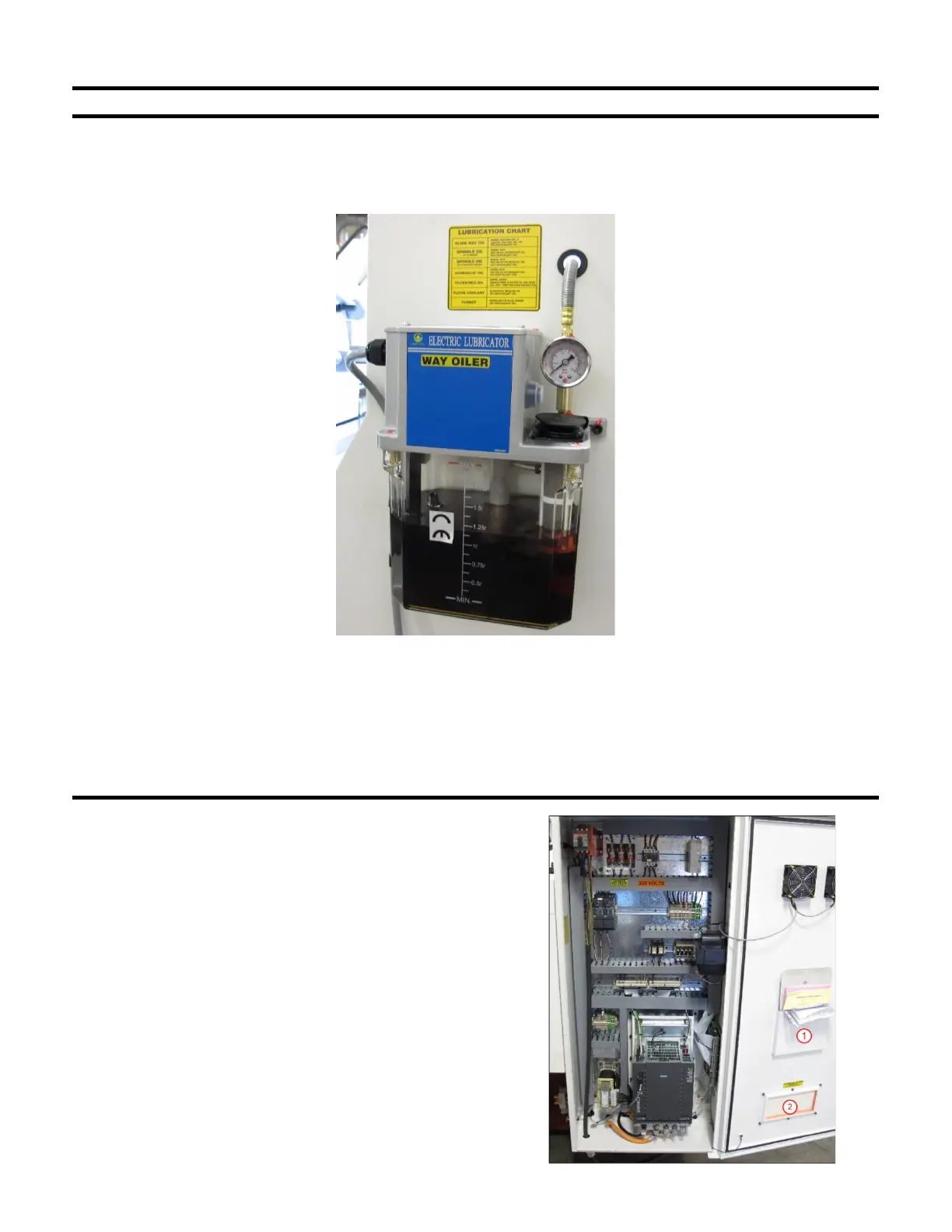

3.21 Axis Lubrication System
• The automatic way lube system is controlled by the PLC in the control. The system only pumps way oil when
the spindle and axes are moving. If there is no machine movement the pump will not pump unnecessary oil.
This method greatly reduces way lube usage and keeps oil out of the machine coolant sump and prevents
fouling.
• If the machine has been unused for more than 48 hours press the blue pushbutton on the side of the lube tank
for approximately 30 seconds to pump oil to the ways. The pressure gage on the tank will indicate if it is
working properly.
• If the system detects low way lube it will display the following message in the control: 700040 - WAY OILER
PRESSURE FAULT
3.22 Electrical System
• Schematics (1) – The Electrical and Pneumatic
Schematics are inside electrical cabinet
• Cabinet Filter Type (2) – Purolator A23465 or equivalent
• Check Filter Interval - Weekly
• Change Filter Interval – As Required (depending on
environment)
