FRYER CM Series - Mechanical Drawings and Parts Lists; 828 Control Electrical Panel Layout

37
6.0 – MECHANICAL DRAWINGS

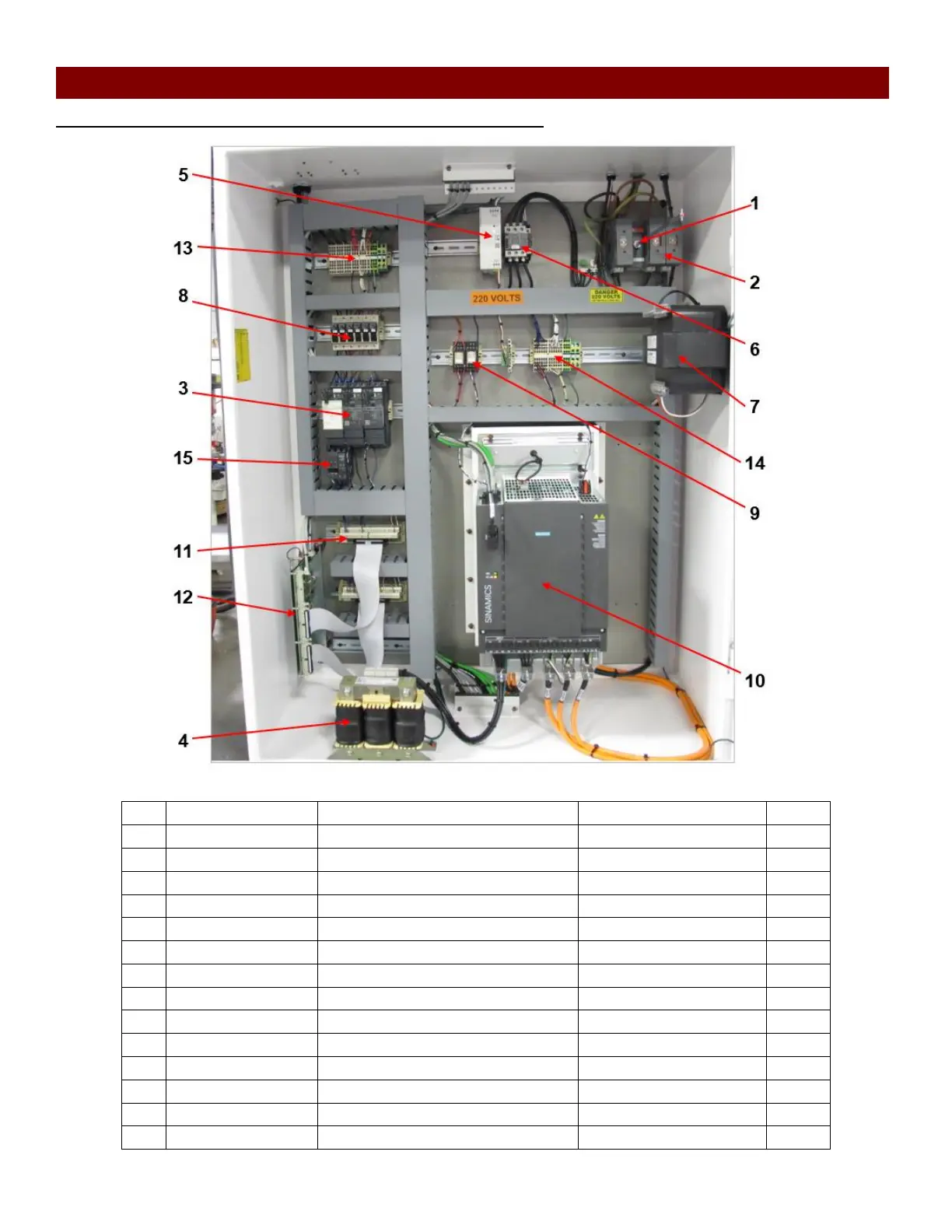

6.1 828 CONTROL ELECTRICAL PANEL LAYOUT
828 CONTROL ELECTRICAL PANEL – PARTS
REF
PART NO.
DESCRIPTION
PARTS NAME
QTY
1
SWT-5064
Main Disconnect
1
2
MSE-1912
Fuse Block
1
3
Motor Controller Overloads
1
4
Line Choke
1
5
MSE-2940
24 VDC POWER SUPPLY
1
6
MSE-1410
MC1 Magnetic Contactor
1
7
MSE-1610
Transformer
1
8
Fuse Panel
1
9
Contact Relays
1
10
Combi Drive
1
11
I/O Breakout Board
1
12
MSE-1330
I/O Card
1
13
Terminal Block
1
14
Terminal Block
1
