Machine Components
39
Product Overview
2

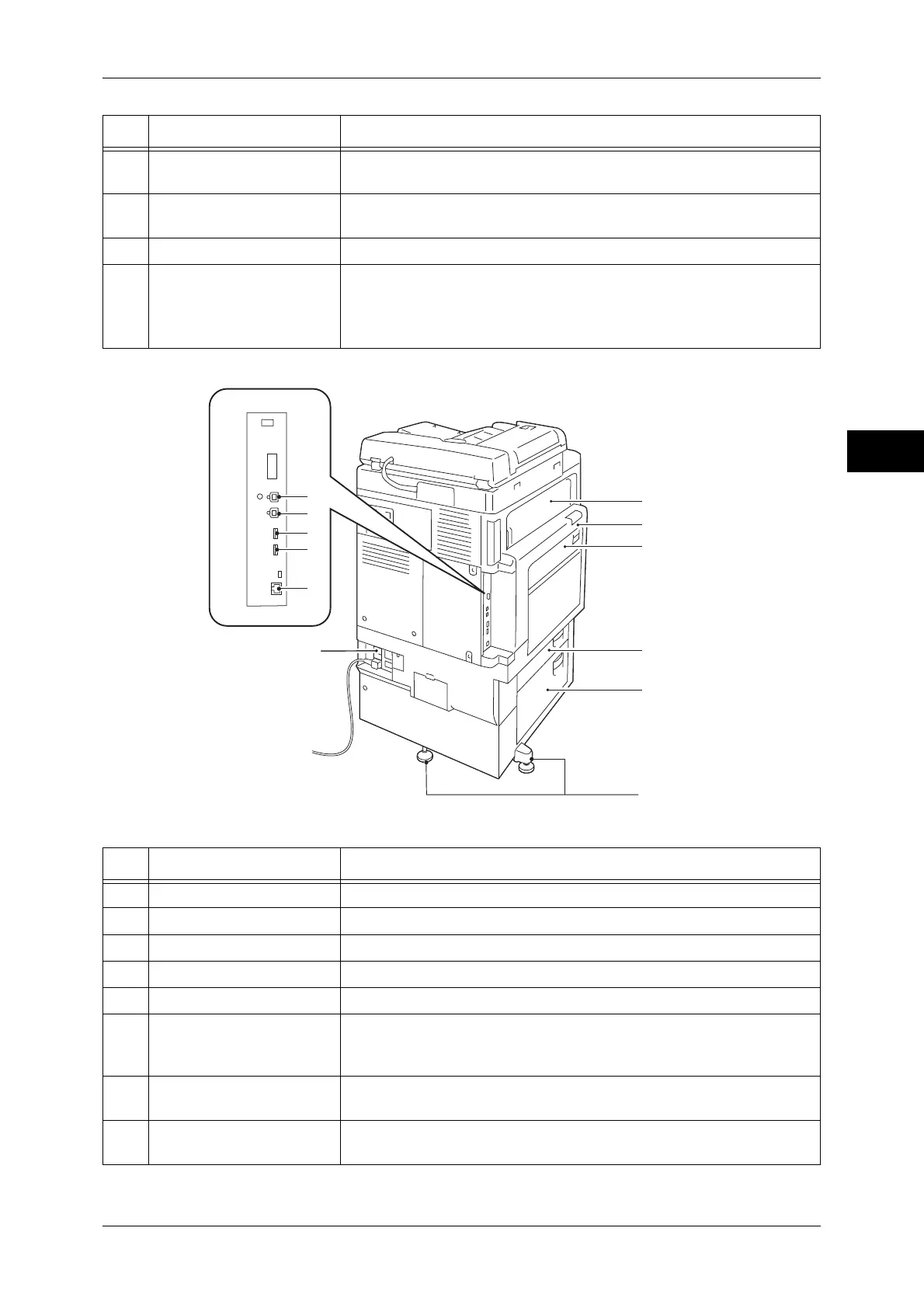

îš„Left side and rear views of the machine
9 Locking casters Used for locking the wheels of the machine. Lock these casters after
moving the machine to its installation site.
10 Tray 5 Used for loading non-standard paper, such as postcards, that cannot be
loaded in Trays 1 to 4.
11 Stylus pen holder Stores the stylus pen.
12 Stylus pen Used for touching the touch screen on the control panel to configure
settings.
Note • You can directly touch the touch screen not only with the stylus pen
but also with a finger.
No. Component Function
1 Top left cover E Open this cover to clear paper jams.
2 Top left cover A Open this cover by lifting up the release lever to clear paper jams.
3 Top left cover D Open this cover by lifting up the release lever to clear paper jams.
4 Bottom left cover B Open this cover to clear paper jams.
5 Bottom left cover C Open this cover to clear paper jams.
6 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in clockwise direction until it
touches a floor.
7 RESET button Automatically switches the machine off when a current leakage is
detected.
8 USB 2.0 interface
connector
Connects a USB cable for a maintenance port.
No. Component Function
6
7
2
3
5
4
1
12
8
9
10
11
