Fujitsu AO*G24LAT3 User Manual

- (01-39) -

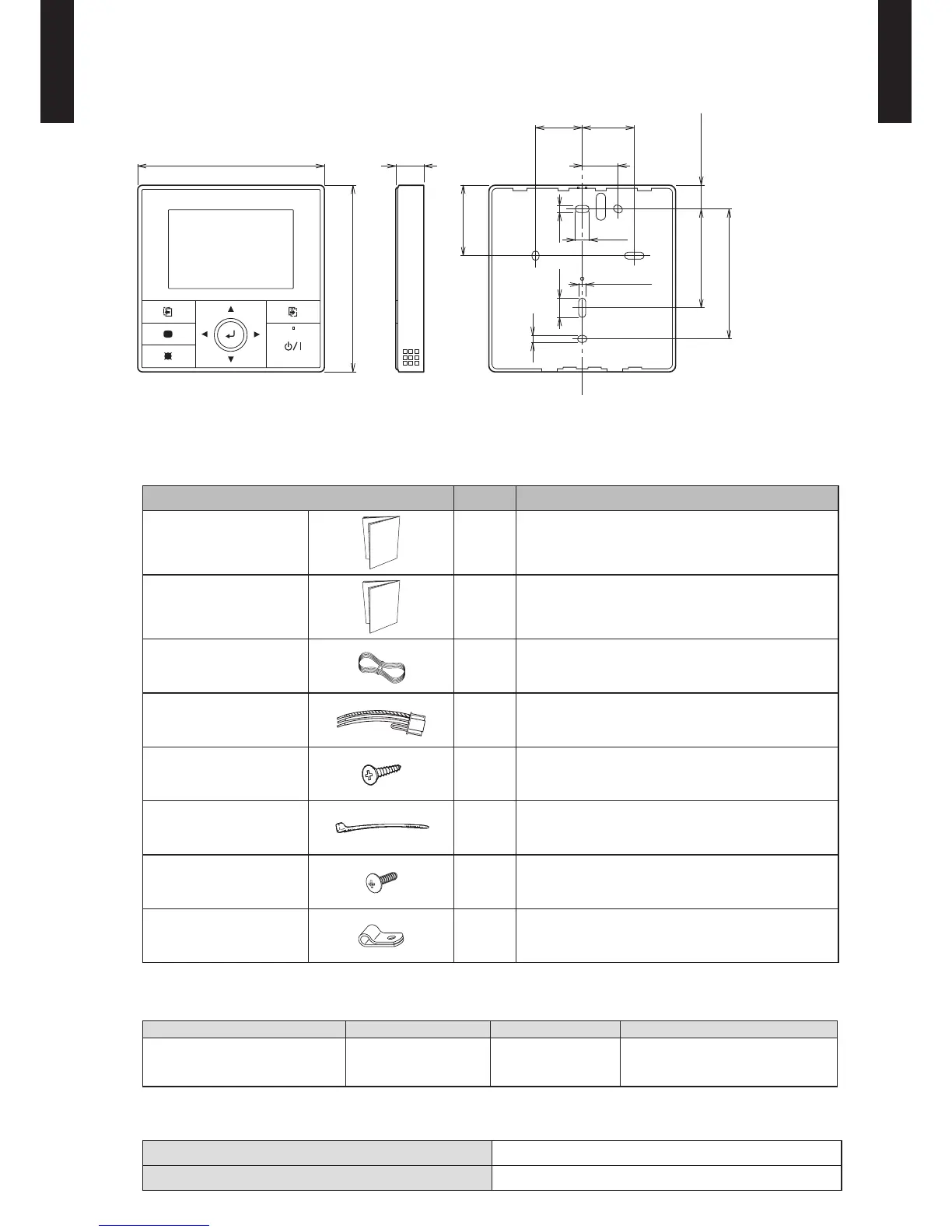

MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
DIMENSIONS

120
120
21.3
30
45.3
12.5
4.5
4.5
15.3 63.5
83.5
23
9
4.5
33.5
Front View
Side View Rear View
Unit : mm
PACKING LIST

Name and shape Q'ty Summary
Operating manual
1
Instruction book for operation
Installation manual
1
Instruction book for installation
Remote controller cable
1
For connecting the remote controller
Connecting cable
1
For connecting the remote controller cable to the wall
mounted type.
Screw
(M4 × 16 mm)
2
For installing the remote controller
Cable tie
1
To tie the remote controller and cables
Screw
(M4 × 14 mm)
1
For installing the remote controller cable to the indoor
unit
Cable clamper
1
For installing the remote controller cable to the indoor
unit
WIRING SPECIFICATIONS

Use Cable size Wire type Remarks
Remote controller cable
0.33 mm
2
( 22AWG )
Polar 3 core Use sheathed PVC cable
SPECIFICATIONS

Dimensions [H x W x D]: mm 120 x 120 x 21.3
Weight: g 220
