MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE

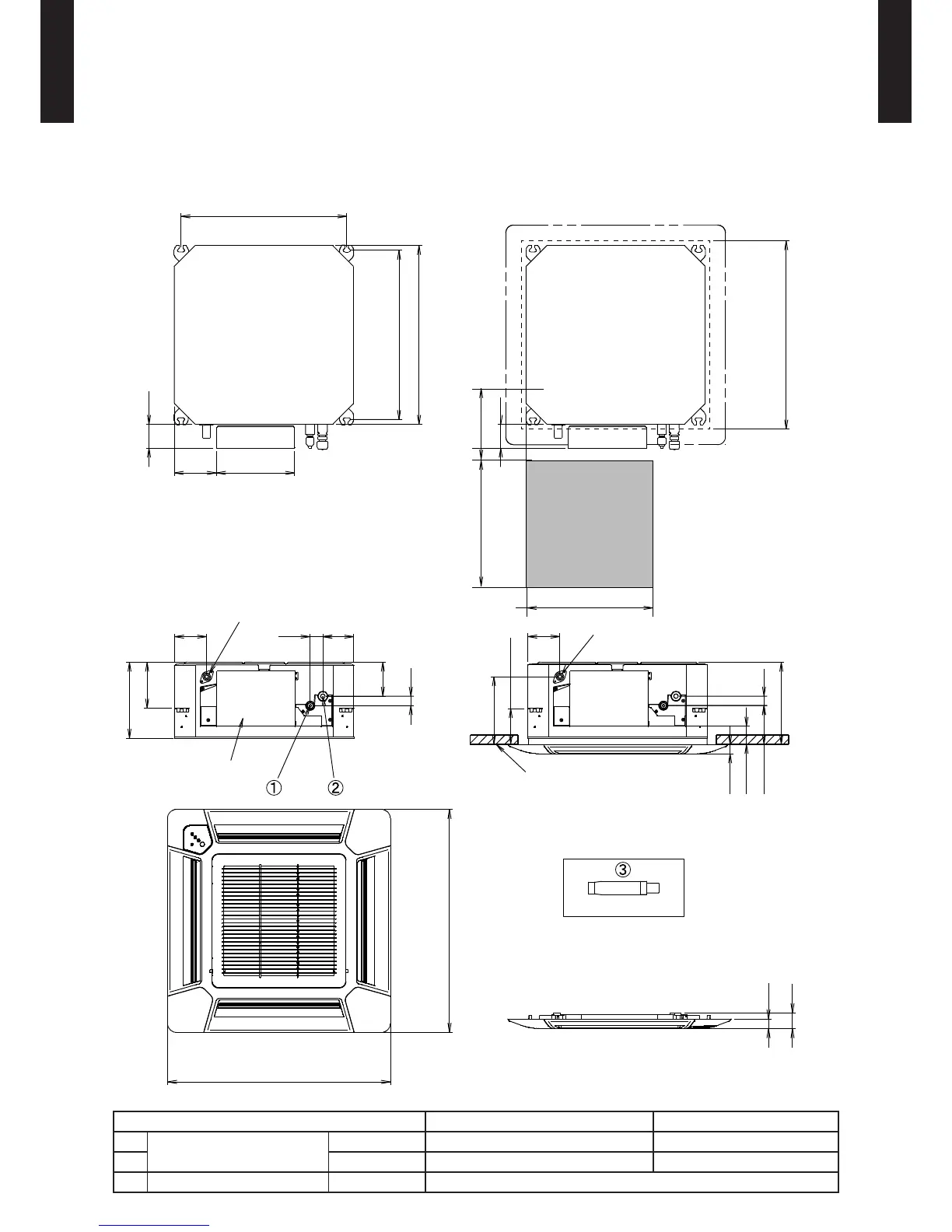

DIMENSIONS4.
COMPACT CASSETTE TYPE4-1.
MODELS : AU


G07LVLA, AU

G09LVLA, AU

G12LVLA,
AU

G14LVLA, AU

G18LVLA,
AU

G12LVLB, AU

G14LVLB, AU

G18LVLB
AU

G07L, AU

G09L, AU

G12L AU

G14L, AU

G18L

Refrigerant pipe are
connection
Liquid ø 6.35 mm (ø 1/4 in.) ø 6.35 mm (ø 1/4 in.)

Gas ø 9.52 mm (ø 3/8 in.) ø 12.70 mm (ø 1/2 in.)

Drain hose connection Drain hose O.D. 32mm (VP25)
Unit : mm
(Drain hose)
530: Hanging bolt position
102
135
250
700
700
75
30
30
262
540: Hanging bolt position
□ 570: Indoor unit
□ 580 to 660 : Ceiling openings
• Cassette grille mounting state
Top view
150 to 200Min. 450
Min. 450
Service access
Side view
215
123
58
114
146
108
102
245
30
40
99
Drain port
Control box
Ceiling
Drain port
Be sure to leave
service access
for future service
at the designated
position.
Bottom view
30 49
Side view
