Fujitsu AO*G24LAT3 User Manual

- (01-81) -
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE

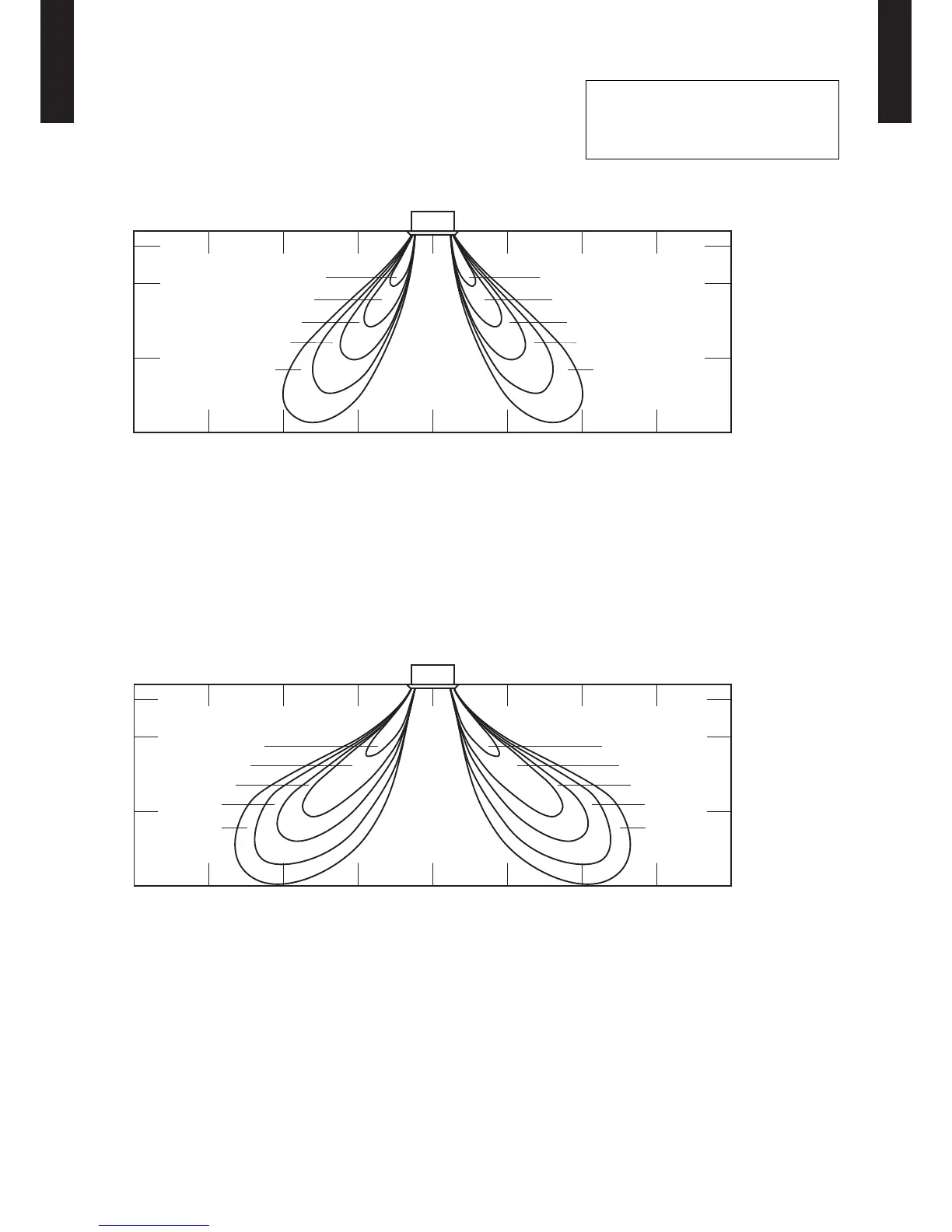

Air velocity distribution
z
Side view
Vertical airow direction louver: Down
1.5 1.5
1.0 1.0
0.5 0.5
0.25 0.25
2.0 2.0
Unit : m/s
(m)
0
1
2
2.7
2.5
(m)
0 11 22 33 44
Air temperature distribution
z
Side view
Vertical airow direction louver: Down
30 30
28 28
26 26
24 24
22 22
Unit : °C
(m)
0
1
2
2.7
2.5
(m)
0 11 22 33 44
Reference data
Conditions
Fan speed: HIGH
Operation mode: HEATING
Vertical airow direction louver: 4 WAY

Fujitsu AO*G24LAT3 Specifications

General

Brand	Fujitsu
Model	AO*G24LAT3
Category	Air Conditioner
Language	English
