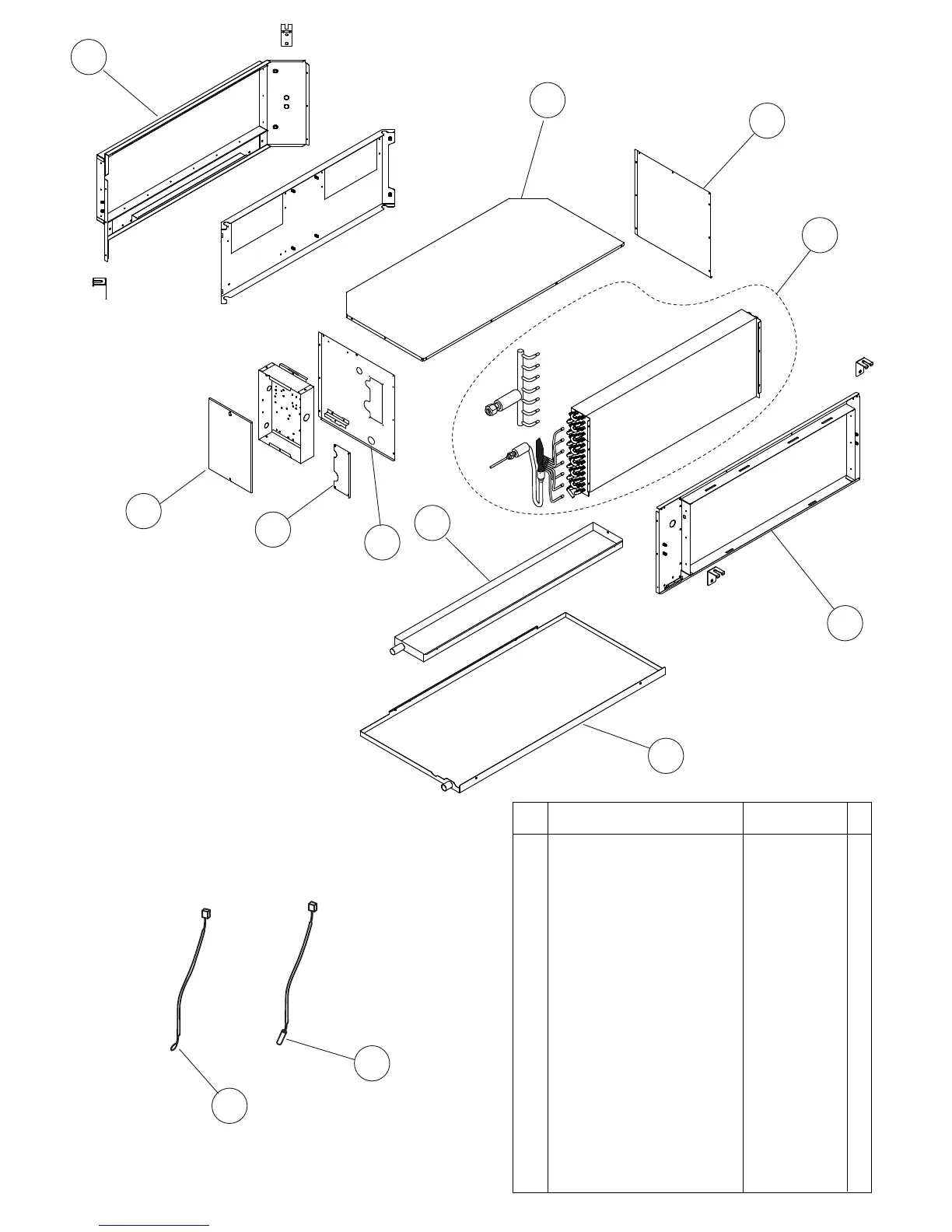

PARTS
INDOOR UNIT
222011.01.18
black
6
7 Drain Pan Assy
6 Pipe Thermistor
2 Kit (Panel Front Sub Assy)
9372579015
9703297113
9372637029
11 Drain Pan S Sub Assy
8 Kit (Panel Right Sub Assy) 9372916032
9 Kit (Panel Mainte Sub Assy) 9372583012
9372582015
10 Kit (Panel Left Sub Assy)
3 Kit (Panel Rear Sub Assy)
9372581018
12 Cover Box 9372061008
5 Evaporator Sub Assy 9372584033
9372636022
1 Plate Top Sub Assy 9372576014
Description Parts numberRef.
Connector : white
4
4 Room Thermistor 9703299216
2
10
3
11
7
8
5
12
9
1
