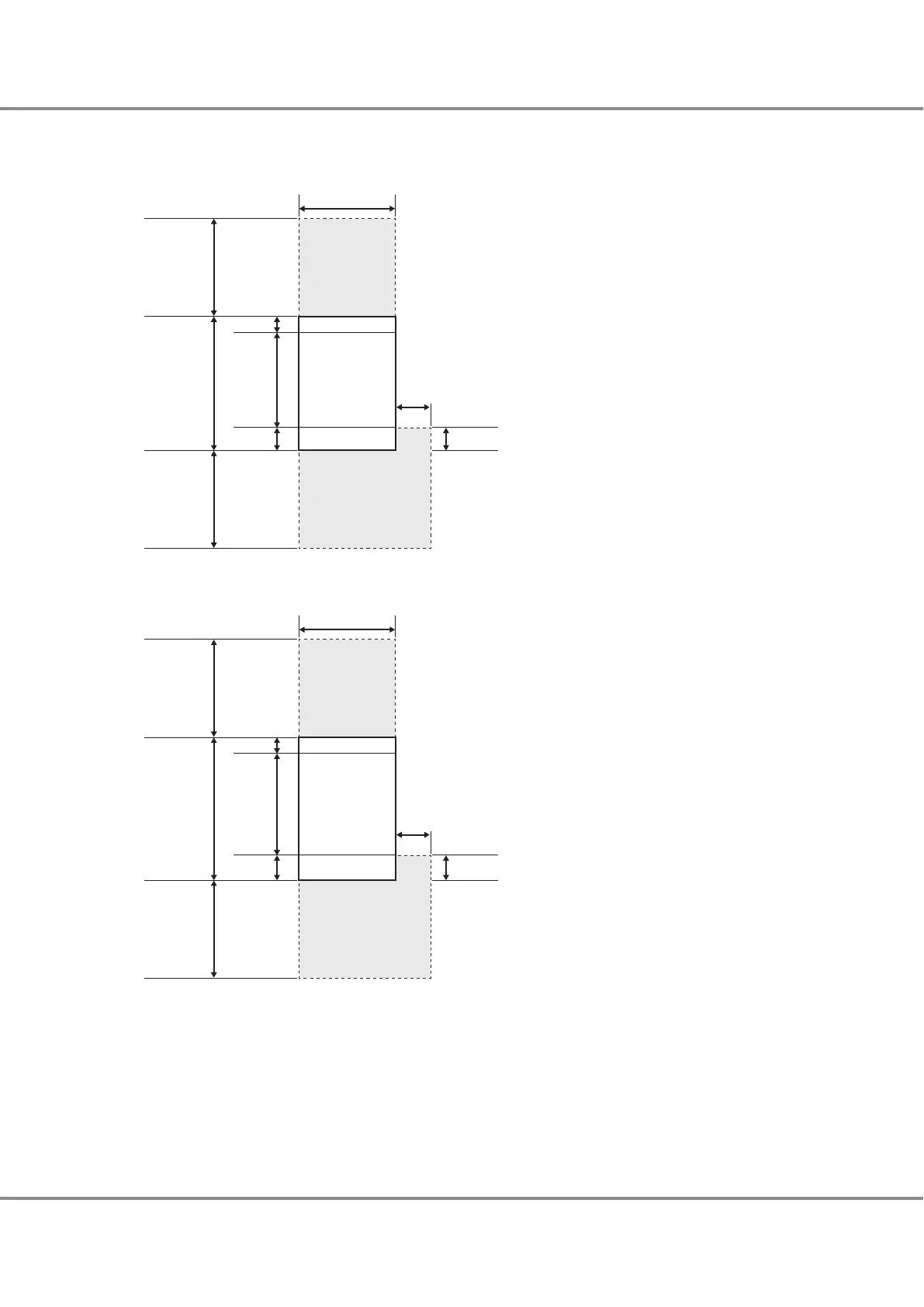

Figure 12 Installation Area and Service Area of a 19-inch Rack (for GS, 1400mm) and a 19-inch Rack (for GS21
1600/1400, 1800mm)
ETERNUS DX
Rear service area
Front service area
1,050mm
850mm or more
850mm or mor
e
975mm
18mm
57mm
(Rear door)
(Front door)
700mm
57mm or more (*1)
80mm or more (*1)
Figure 13 Installation Area and Service Area of a 19-inch Rack (for GS21 2600/2400, 1800mm)
ETERNUS DX
Rear service area
Front service area
1,110mm
850mm or more
850mm or more
1,013mm
18mm
79mm
(Rear door)
(Front door)
700mm
79mm or more (*1)
80mm or more (*1)
1. ETERNUS DX Installation
Installation Area
30
FUJITSU Storage ETERNUS DX8100 S3/DX8700 S3/DX8900 S3 Hybrid Storage Systems
Site Planning Guide
