● 19-inch Racks (for GS, 1400mm)

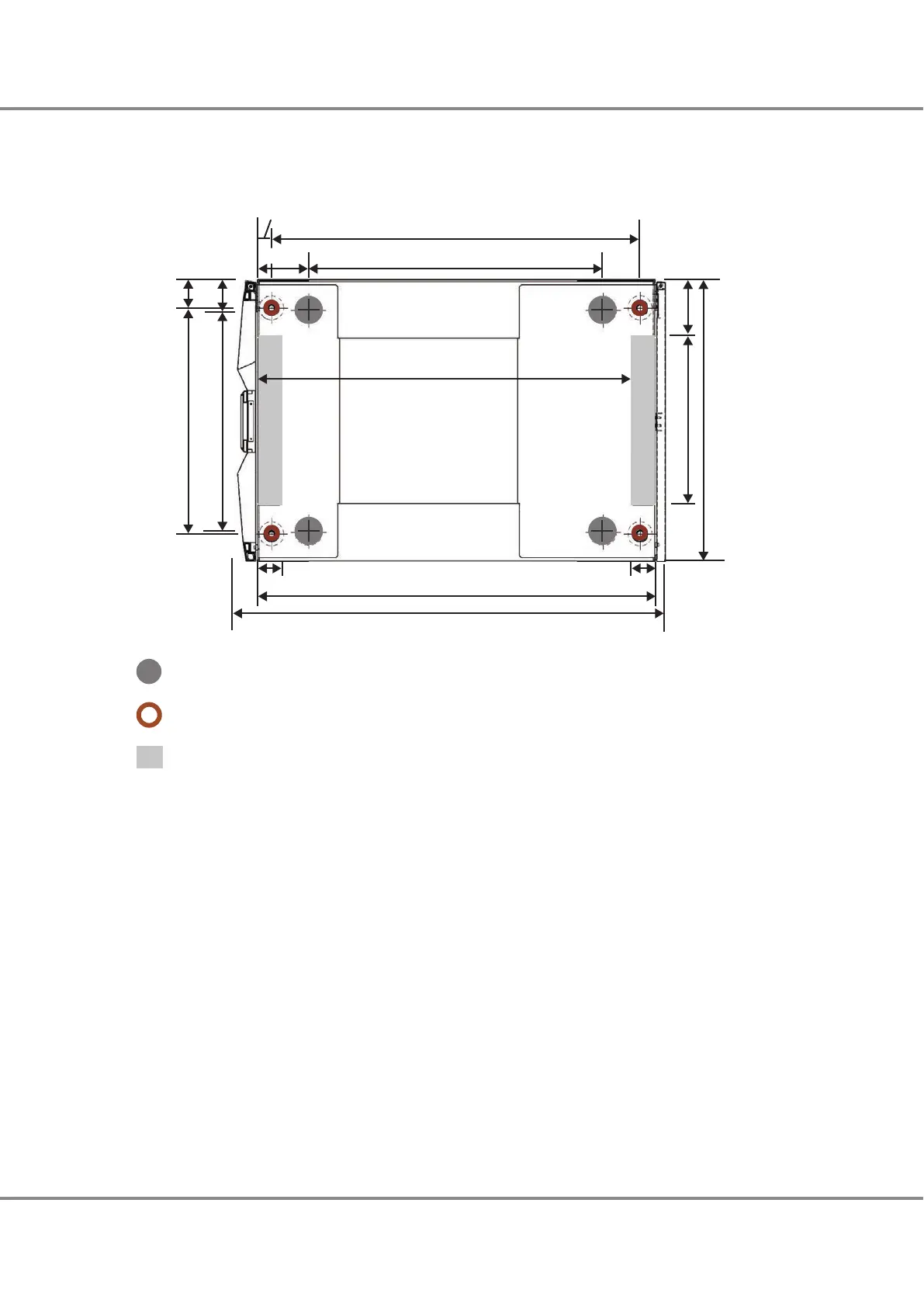

Figure 17 Floor Dimensions of the Rack (of 19-inch Racks (for GS, 1400mm))
906mm
(leveling feet)
724mm
(caster)
Front
Rear
549mm
(caster)
409mm
700mm
146mm
1,050mm
50mm
925mm
71mm
76
mm
33mm
975mm
50 mm
559mm
(leveling feet)
124mm
Caster
Leveling feet
Cable slot
1. ETERNUS DX Installation
Installation Environment
35
FUJITSU Storage ETERNUS DX8100 S3/DX8700 S3/DX8900 S3 Hybrid Storage Systems
Site Planning Guide
Copyright 2020 FUJITSU LIMITED
