Connection Example
(ETERNUS DX8700 S3/DX8900 S3)
● Installing in the Same Rack
This section describes a connection configuration where enclosures on a single node are installed in the same
rack.
The following figure shows an example when one controller enclosure and eight drive enclosures (2U) are instal-
led in a rack.

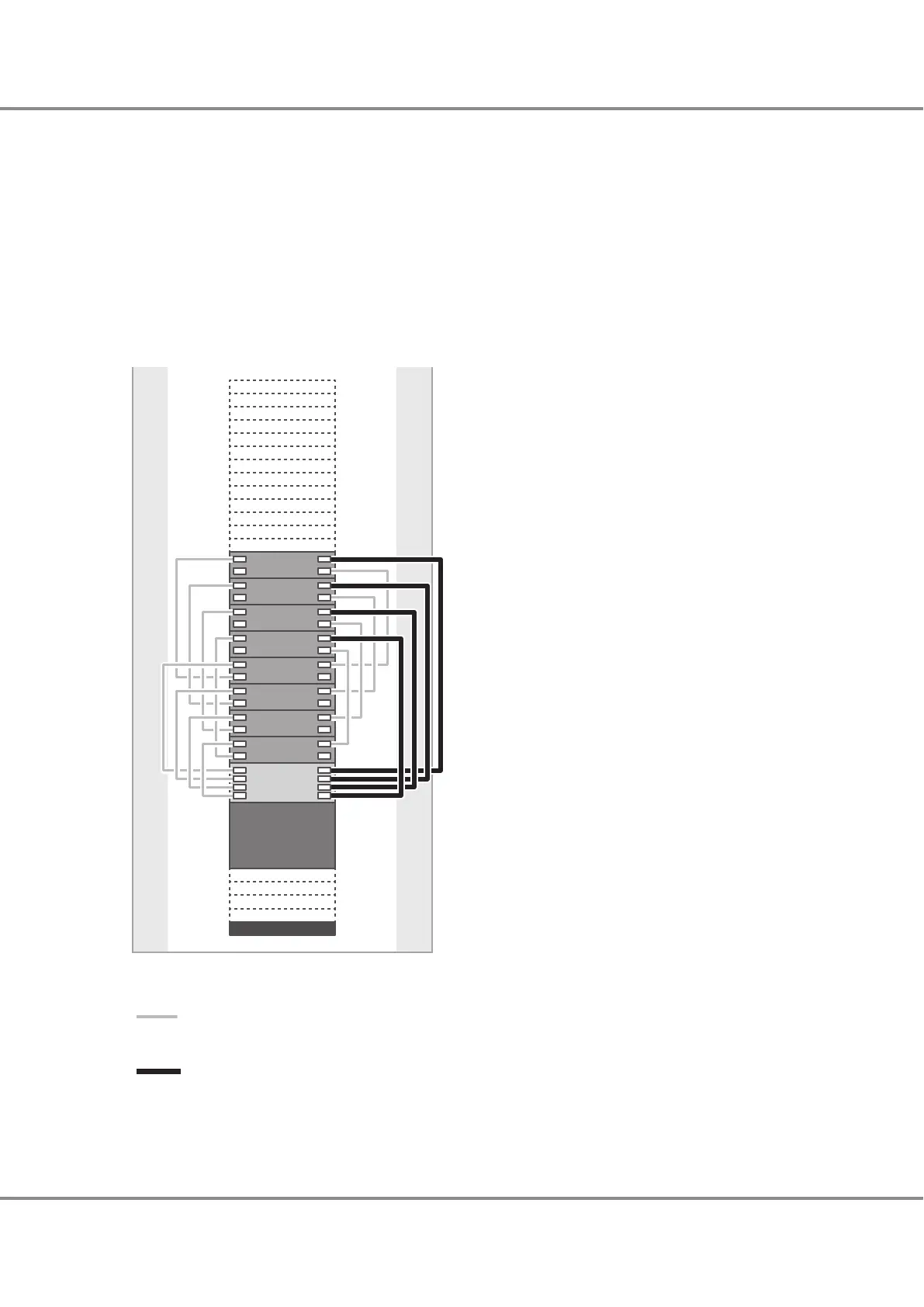

Figure 52 Backend Cable Connection Example (ETERNUS DX8700 S3/DX8900 S3 Connections in the Same Rack)
DE
DE
DE
DE
DE
DE
DE
DE
CE#0
FE
Base rack (rear)
Cables that are supplied as standard
1.1m
Extension cables
3.5m
2. Rack Installation Specifications
Rack Installation Requirements
76
FUJITSU Storage ETERNUS DX8100 S3/DX8700 S3/DX8900 S3 Hybrid Storage Systems
Site Planning Guide
Copyright 2020 FUJITSU LIMITED
P3AM-9422-13ENZ0
