Hardware installation Installing/removing the server in/from the rac
k

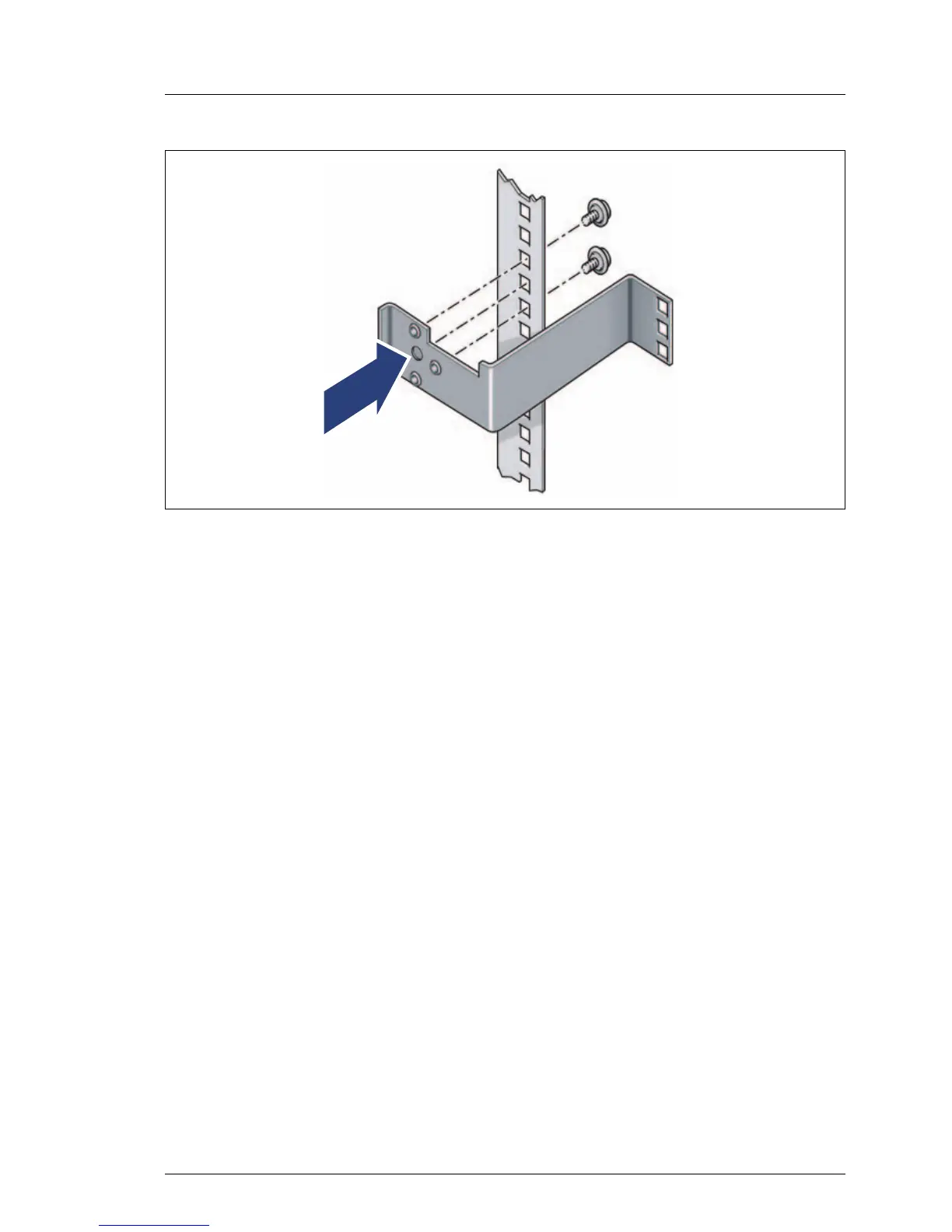

Figure 3: Fitting the support bracket
Ê Position the support bracket at the corresponding height on the rear left
support upright, (insert lug in corresponding hole) (1).
Ê Secure the bracket with two screws incl. plug washers (2).
1
2
