64 Operating manual RX200 S4
Controls and indicators Startup and operation
LAN indicators

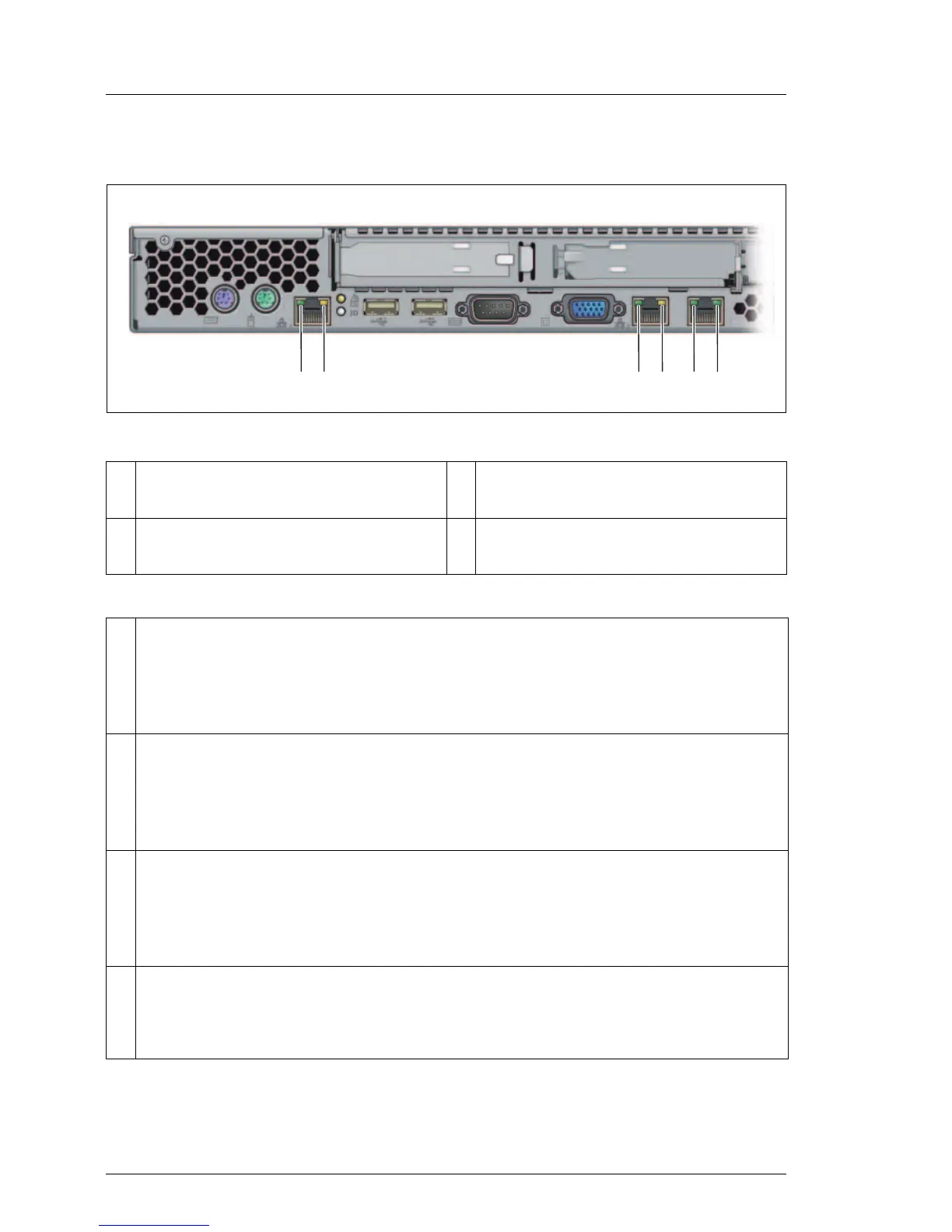

Figure 16: LAN indicators
1 LAN activity indicator
(standard LAN)
3 LAN activity indicator
(service LAN)
2 LAN transfer rate indicator
(standard LAN)
4 LAN transfer rate indicator
(service LAN)
1 LAN activity indicator (standard LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
2 LAN transfer rate indicator (standard LAN)
Lights yellow for a LAN transfer rate of 1 Gbps.
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
3 LAN activity indicator (service LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
4 LAN transfer rate indicator (service LAN)
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
12 3 412
