Fujitsu PRIMERGY RX200 S6 - Removing the Air Duct

RX200 S6 Service Supplement 25
Replacement routines

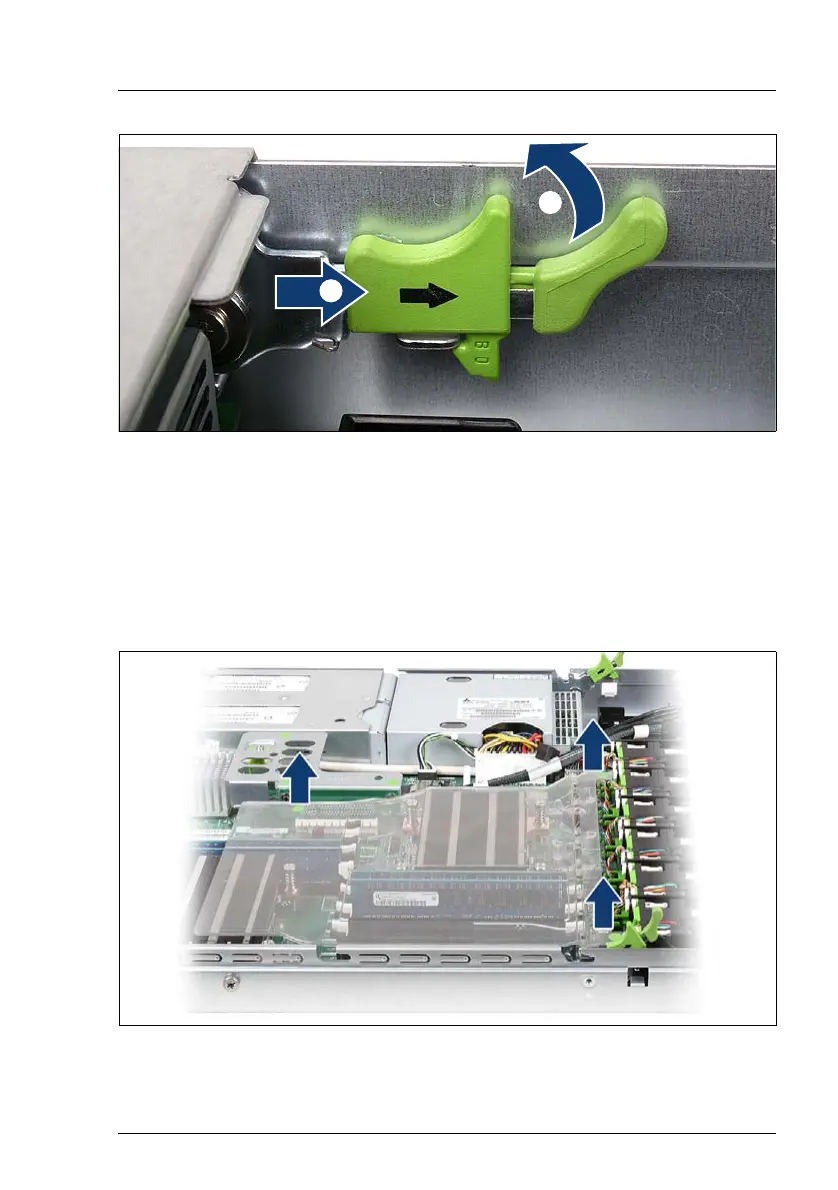

Figure 4: Using the locking levers
Ê Push the green locking levers together as shown (1) and then move them
up (2) so that the housing cover is pushed backward slightly.
Ê Lift the housing cover upward and remove it.
4.1.2 Removing the air duct
Figure 5: Removing the air duct
Ê Lift the air duct upward and remove it.
