RX200 S6 Service Supplement 35
Replacement routines
Ê Reinstall the air duct (see the section "Installing the air duct" on page 26).
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
4.6 Replacing the power-distribution module
The power-distribution module comprises a power backplane and a housing. In
case of a defect, you must replace the complete unit.
Removing the defective power-distribution module
Ê Remove the power supply unit(s) before you pull the server out of the rack.
Ê Open the server as described in the section "Opening/closing the server" on
page 23.
Ê Disconnect the power cables of the power-distribution module from the HDD
backplane and the system board (see the cabling plans in the Appendix of
the Options Guide).

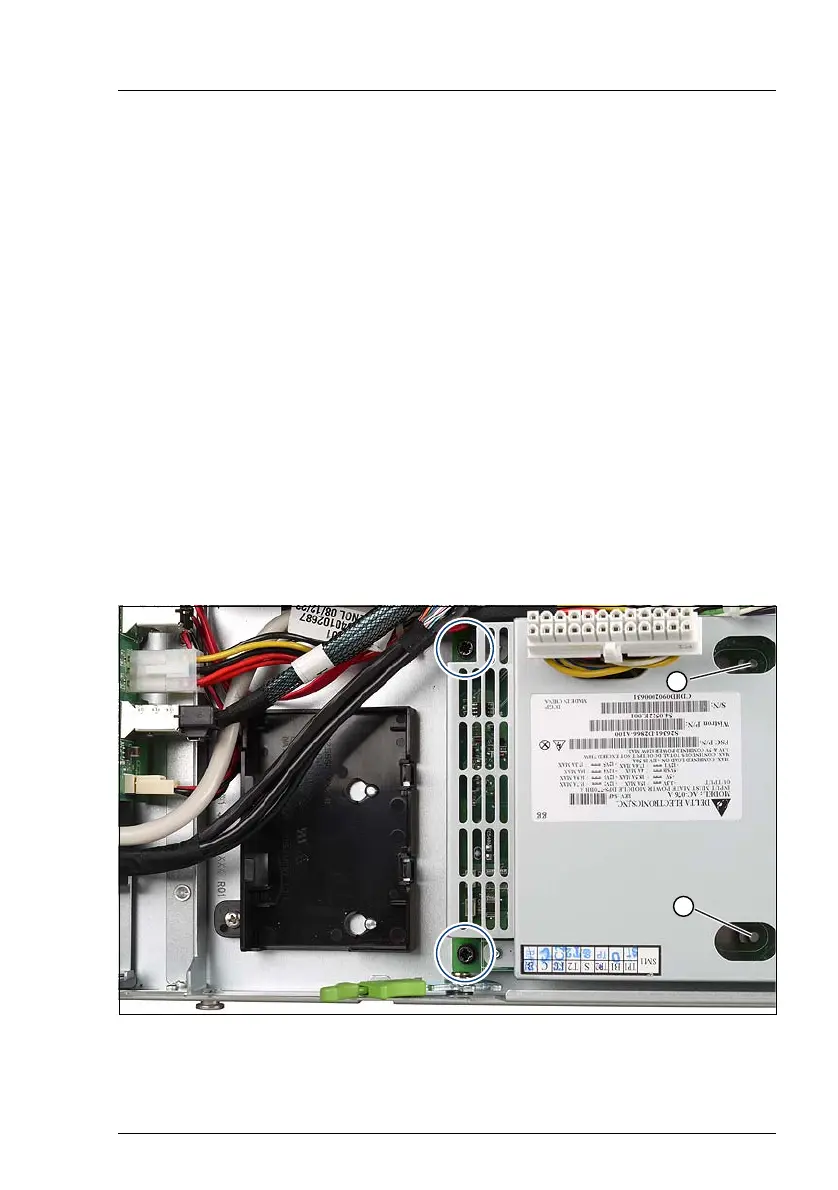

Figure 15: Removing the power-distribution module
Ê Remove the two screws (see circles).
A
A
