Replacement routines
4.1.3 Installing the air duct

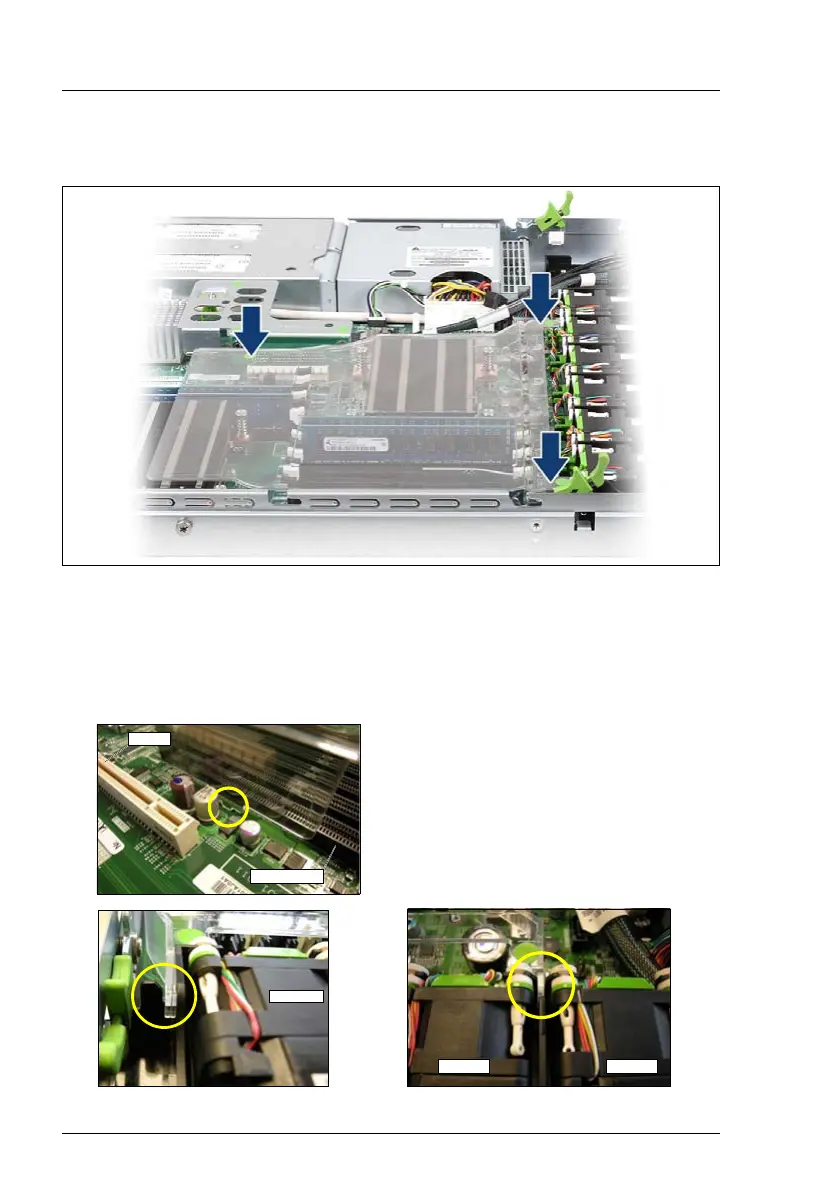

Figure 6: Installing the air duct
Ê Install the air duct.
– The plastic pin of the air duct must fit into the groove of the system board.
– The air duct must be hooked into the fan brackets on the left side and the
right side.
Slot #3
DIMM CPU #1
Fan #11/#12
Fan #1/#2
Fan #3/#4
