RX200 S6 Service Supplement 33
Replacement routines
Installing the new UFM

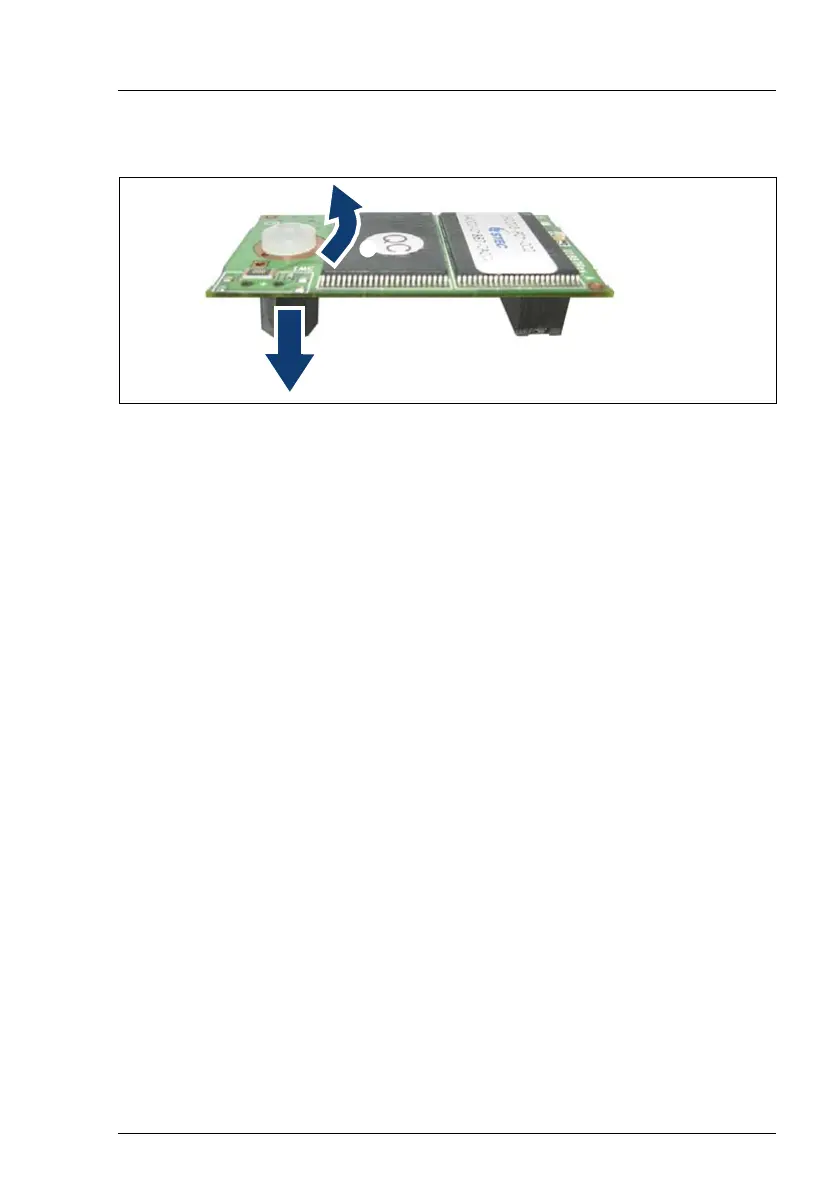

Figure 13: Preparing the UFM
Ê Remove the nylon screw from the new UFM (1).
Ê Remove the UFM spacer (2).
Ê Connect the new UFM to the system board and the remaining UFM spacer.
Ê Fasten the UFM to the UFM spacer with the nylon screw.
Ê If necessary, reinstall the modular RAID controller (for a description, see the
Options Guide)
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
햳
햲
