110 Options Guide TX200 S6
Completion
12.2.2 Closing the server

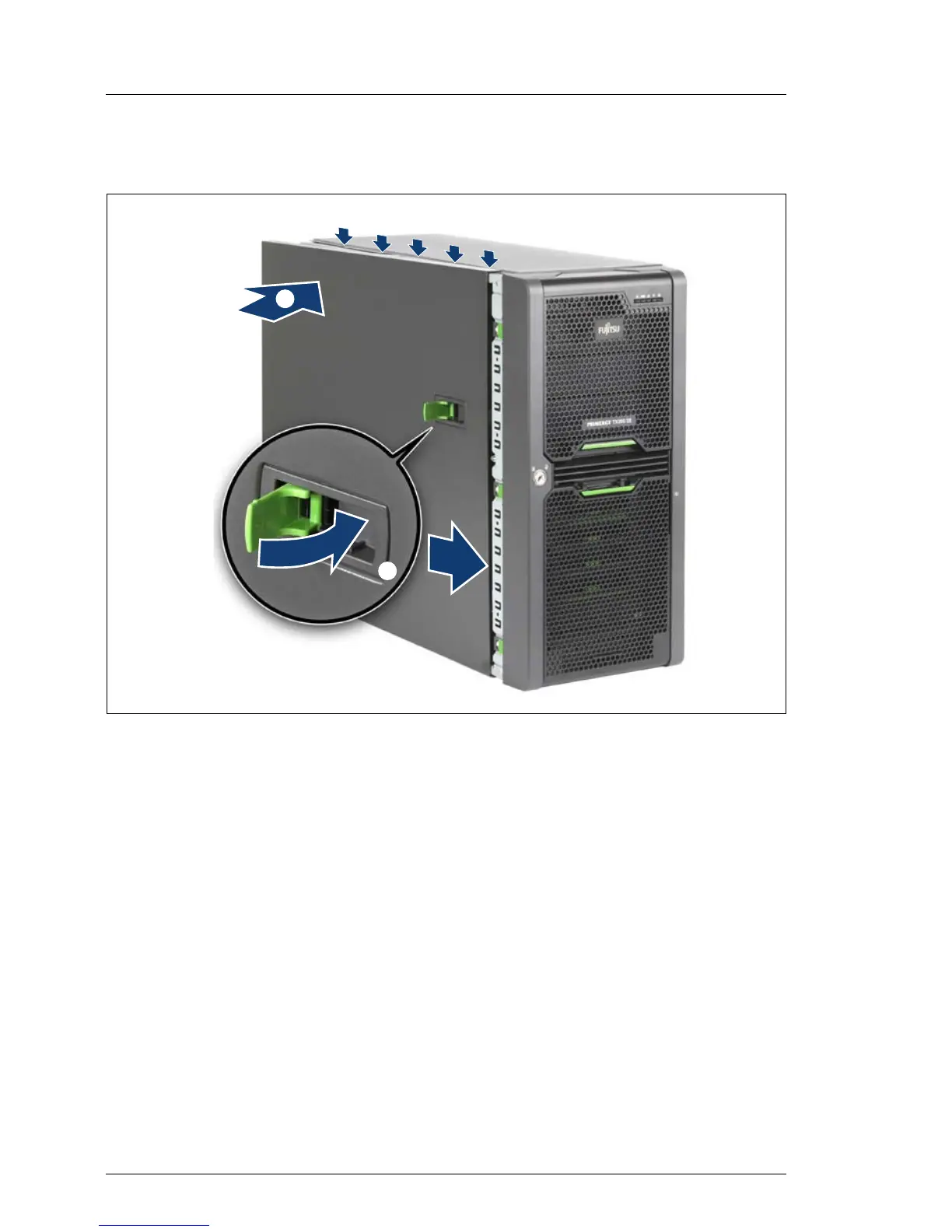

Figure 94: Attaching the left-hand side cover
Ê Pull the locking lever as far as it will go and insert the side cover in the five
recesses (see circles) on the housing (1).
Ê Push the side cover against the housing and push down the locking lever (2)
at the same time.
Closing the locking lever pushes the side cover forwards and the hooks on
the upper edge of the side cover engage.
Ê Insert the key.
Ê Lock the server.
Ê Connect all power plugs to the power outlets.
Ê Press the On/Off button to start up the server.
