12.3 Rack model
12.3.1 Attaching the rack front cover
Reattach the rack front cover after implementing the following routines:
– Installing/removing accessible drives
– Conversion from a floorstand model to a rack model

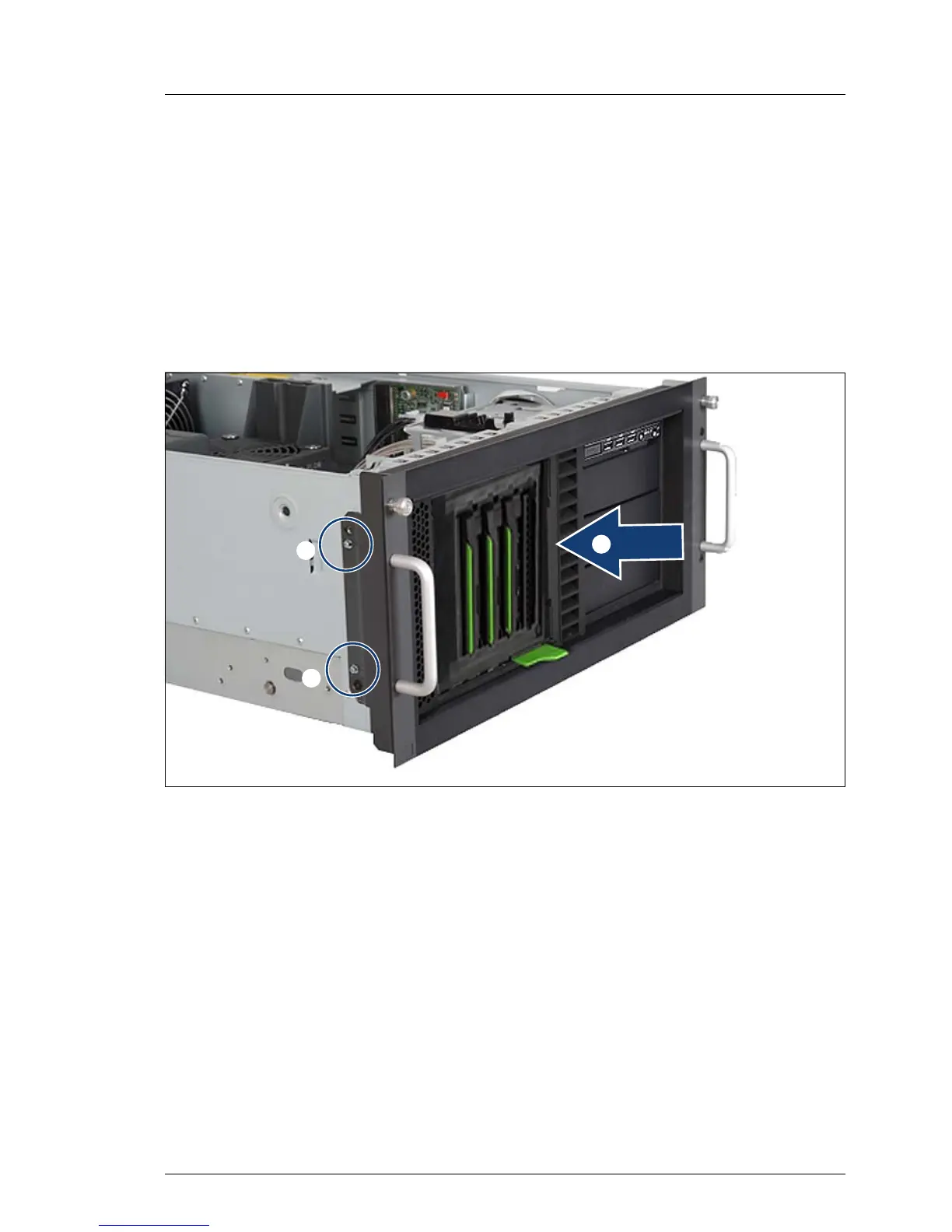

Figure 95: Attaching the rack front cover
Ê Attach the rack front cover, together with the plastic front cover, from the
front (1).
V CAUTION!
The rack front cover brackets are marked "Left" and "Right". Position
the bracket marked "Left" on the left of the rack front.
Ê Attach the rack front cover using two screws on each side (2).
