112 Options Guide TX200 S6
Completion
12.3.2 Closing the server
Ê Pull the locking lever as far as it will go and insert the top cover in the five
recesses on the housing (see also figure 94 on page 110).
Ê Push the top cover against the housing and push down the locking lever at
the same time.Closing the locking lever pushes the top cover forwards and
the hooks on the right edge of the top cover engage.
If you have not removed the server from the rack cabinet, please skip steps 1-4.
V CAUTION!
At least two people are required to install the server in the rack cabinet.
Do not use the handles on the rack front cover to lift the server into the
rack.

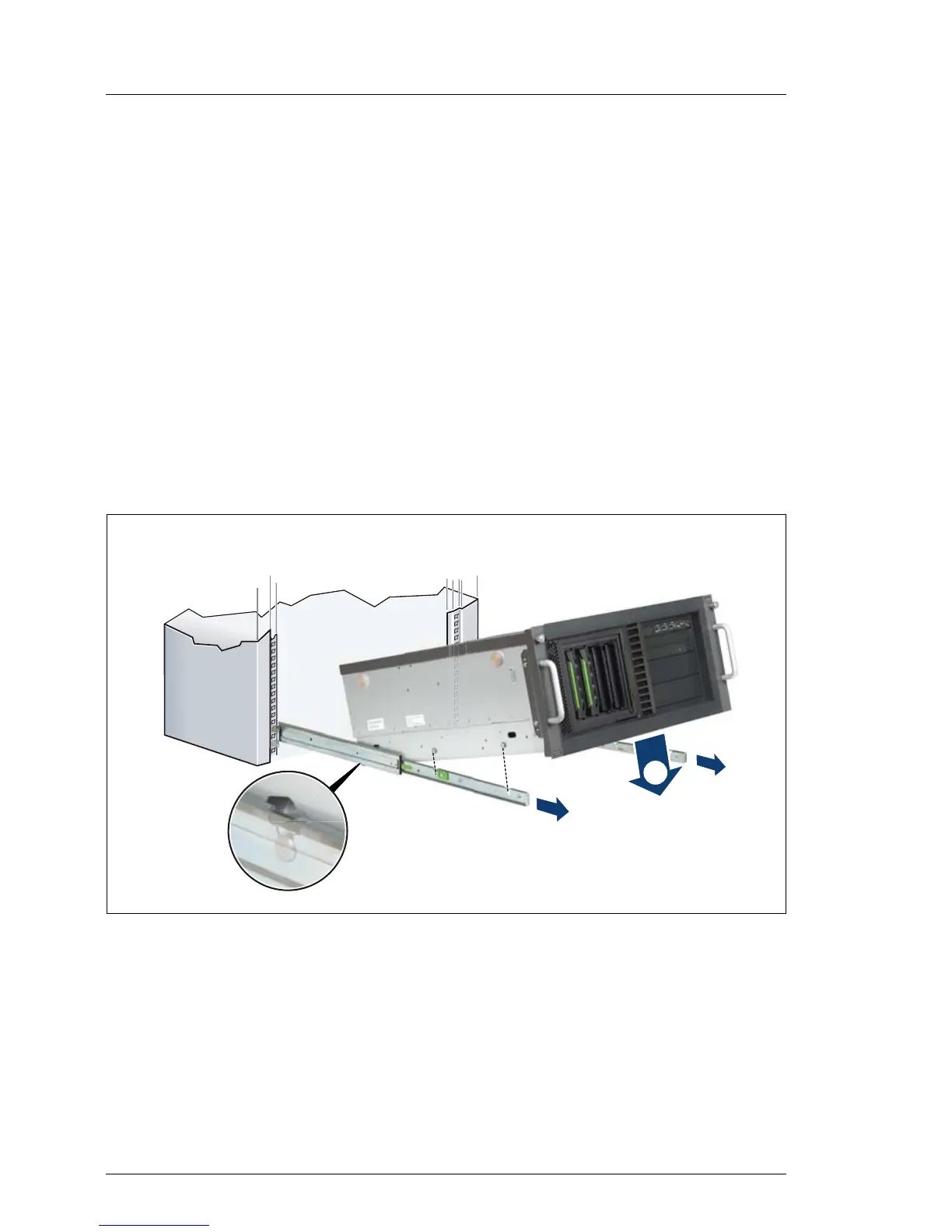

Figure 96: Inserting the server (a)
1
2
0
0
