80 Options Guide TX200 S6
Expansion cards and BBU

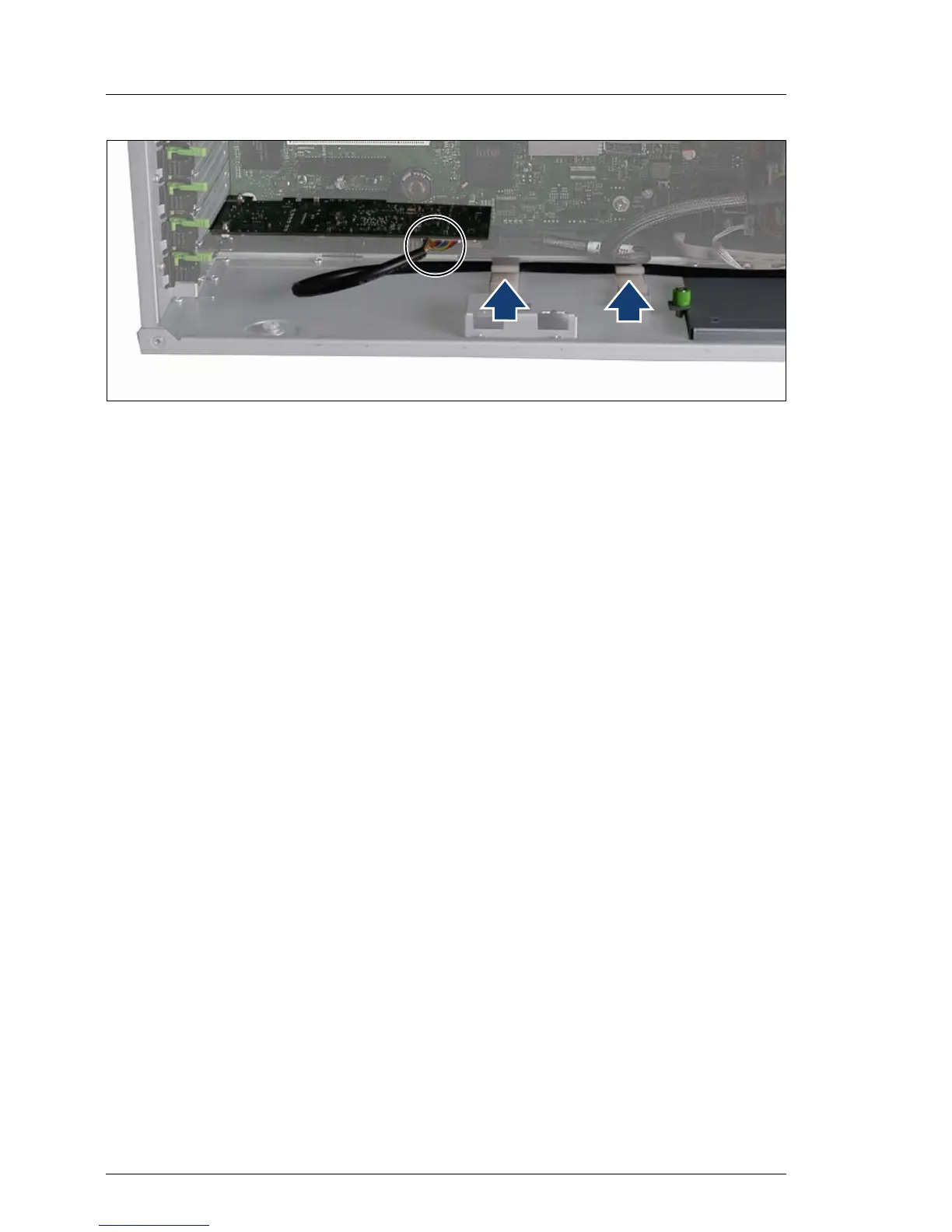

Figure 56: Example: Connecting the BBU cable to the controller
Ê Install a controller as described in the section "Installing expansion cards" on
page 73.
V CAUTION!
Make sure that the connector side with the blank pins is facing the board.
Otherwise you risk short-circuits.
Ê Route the BBU cable in the cable clamps and connect it to the controller.
Ê In case of a configuration with two BBUs:
Ê Install a further controller.
Ê Route the BBU cable in the cable clamps and connect it to the controller.
Ê Reinstall system fan 2 (or 2&4) as described in the section "Installing system
fan 2 (or 2&4)" on page 108.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 107.
8.2.2 Installing BBU (BBU fixation 2)
You can install up to two Battery Backup Units (BBU).
I There are different BBUs available.
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter "Preparation" on page 27.
