TX200 S6 Options Guide 33
Preparation
4.3 System fans

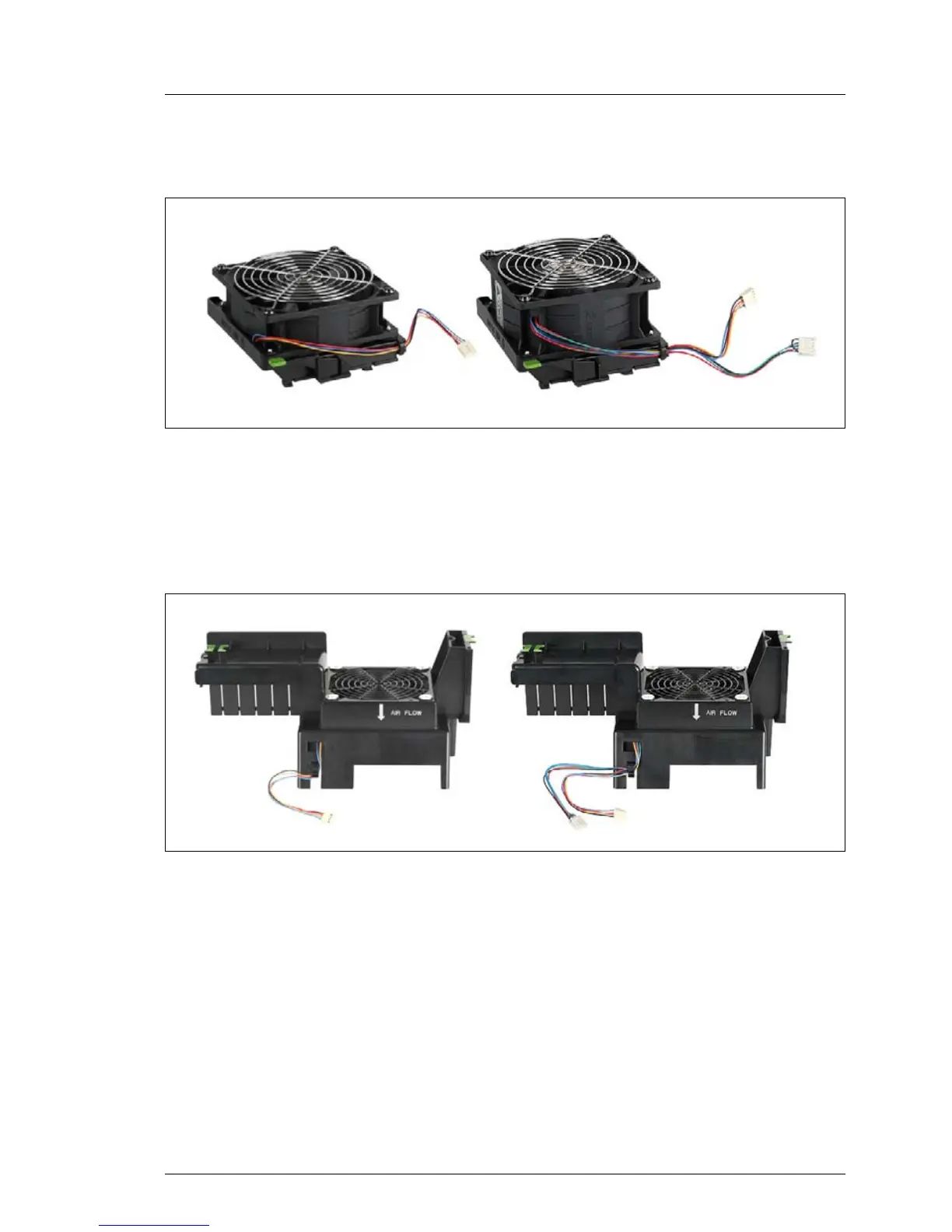

Figure 7: System fan 1 and system fan 1&3
The standard system fan 1 is shorter and has just one fan cable; the redundant
system fan 1&3 (dual fan, two fans are integrated internally) is taller and has two
fan cables. The procedure for removing both system fans is identical except for
connecting the fan cables.
Figure 8: System fan 2 and system fan 2&4
The standard system fan 2 has just one fan cable; the redundant system fan
2&4 (dual fan, two fans are integrated internally) has two fan cables. The
procedure for removing both system fans is identical except for connecting the
fan cables.
