TX200 S6 Options Guide 91
Further options
9.3 Second serial connector
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter "Preparation" on page 27.

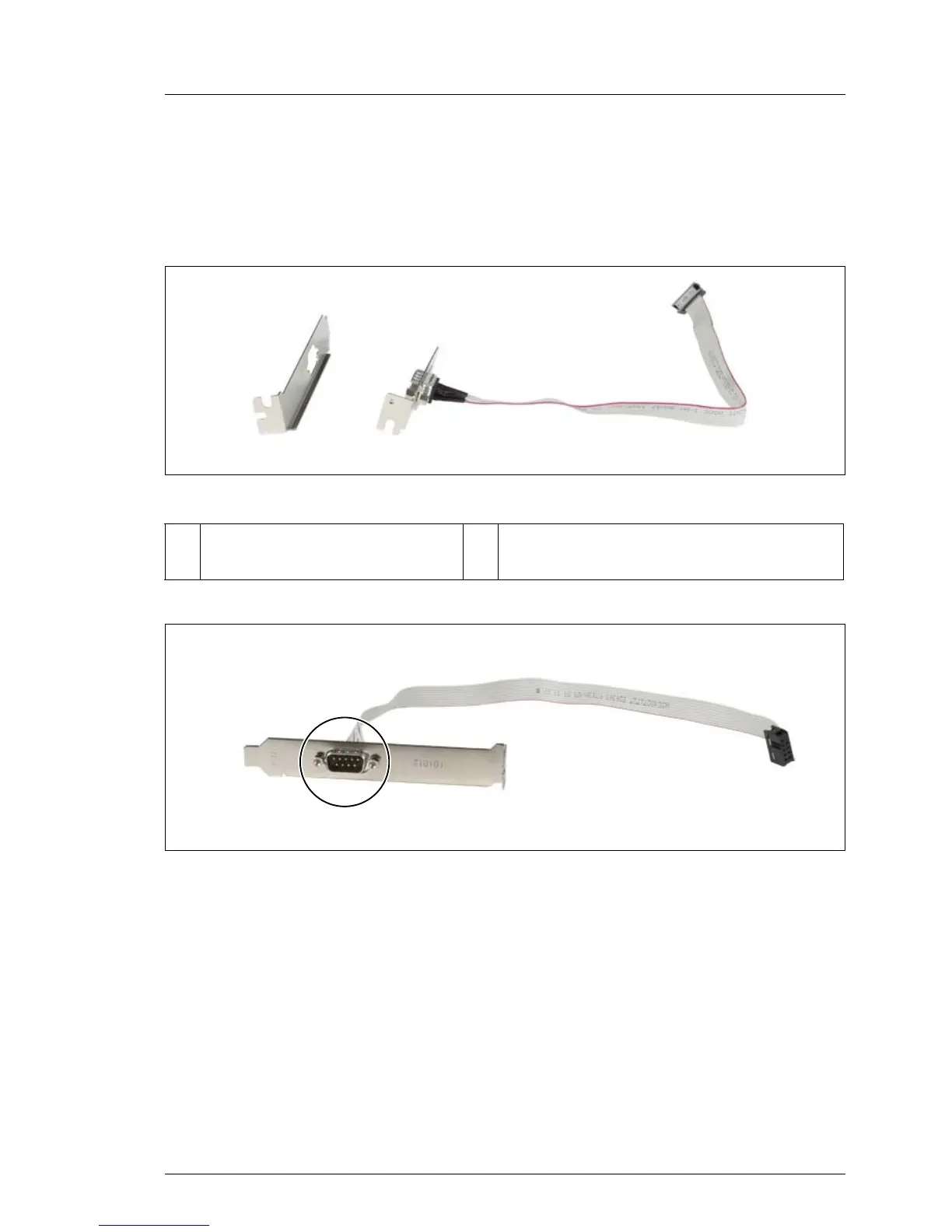

Figure 71: Second serial connector installation kit
Figure 72: Replacing the slot cover
Ê Remove the two screws on the short slot cover.
Ê Insert the serial connector in the long slot cover.
Ê Fasten the long slot cover with the two screws.
1 Long slot cover 2 Second serial connector with short slot
cover
