Fujitsu PRIMERGY TX200 S6 Options Guide

90 Options Guide TX200 S6
Further options

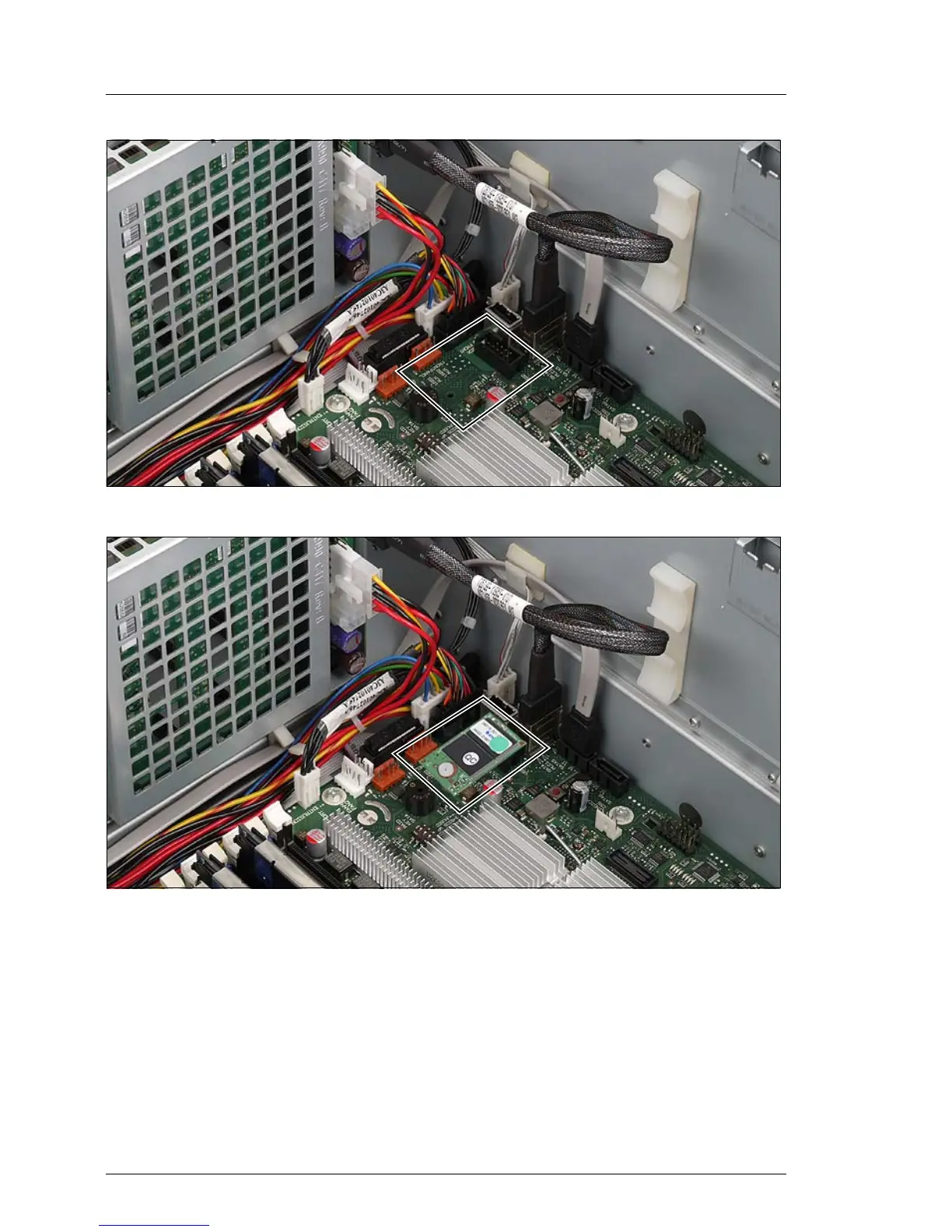

Figure 69: UFM - Position on the system board
Figure 70: Connecting the UFM to the system board
Ê Connect the USB Flash Module to the system board. The spacer must click
into the hole on the system board.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 107.
