Fujitsu PRIMERGY TX200 S6

54 Options Guide TX200 S6
Accessible drives and LSD/LSP
7.2 Installing an accessible 5.25-inch drive
Magnetic tape drives and DVD drives are available as accessible 5.25-inch
drives. These drives can be installed in the free 5.25-inch bays.
Ê Open the server as described in the chapter "Preparation" on page 27.
Ê Remove the front cover or rack front cover as described in the section
"Removing the front cover" on page 29 or in the section "Removing the rack
front cover" on page 32.
I New 5.25-inch drives are supplied without EasyClick rails. Before
installing a new 5.25-inch drive you must therefore remove the EasyClick
rails from the dummy cover and mount the EasyClick rails on the new
5.25-inch drive.
I If you install a magnetic tape drive with double height (3.2-inch), two
dummy covers of the free 5.25-inch bays must be removed.

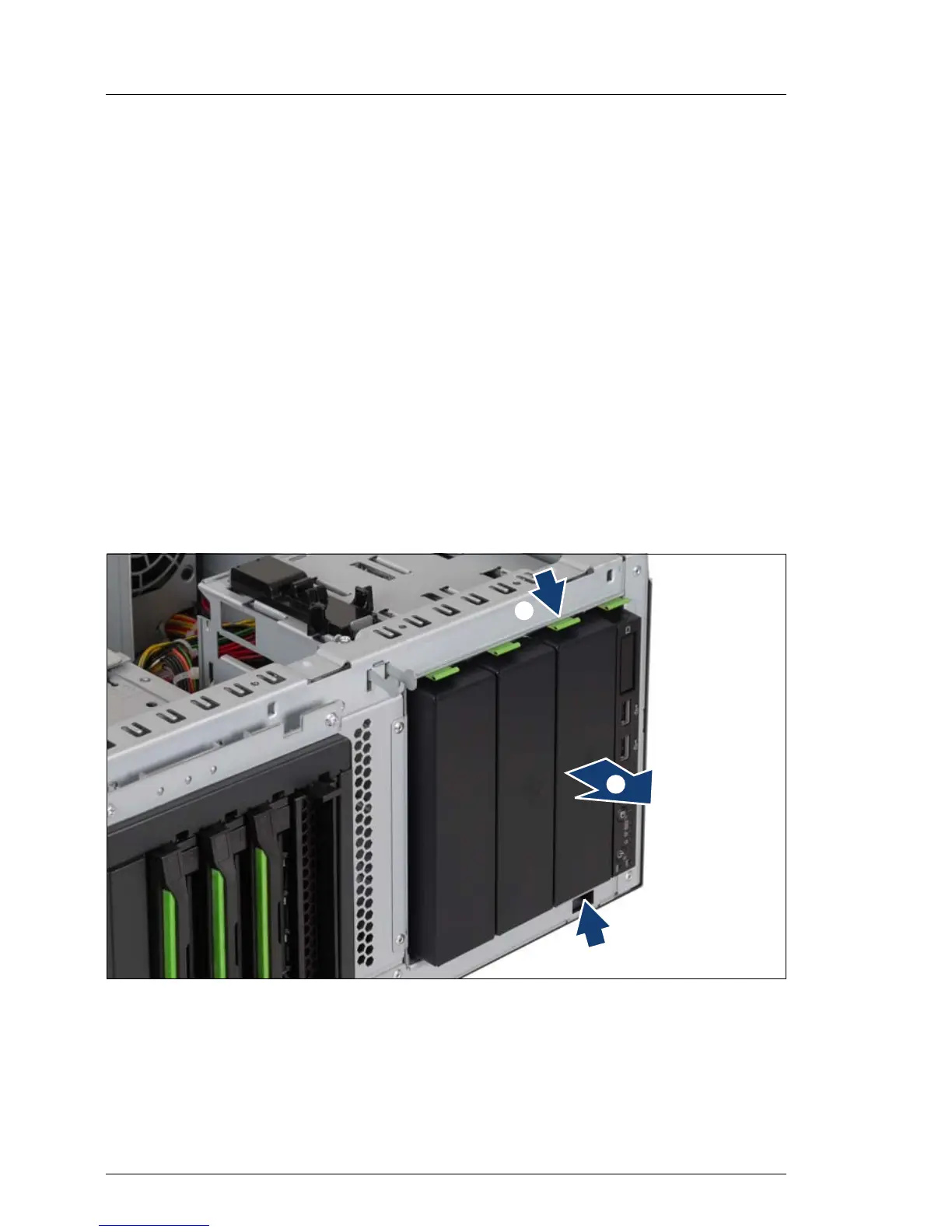

Figure 22: Removing the dummy cover
Ê Press the metal tongues on the sides of the EasyClick rails inward (1) until
the locking mechanism disengages.
Ê Pull the dummy cover out of the bay frontward (2).
Ԙ
ԙ
Ԙ
