Accessible drives and LSD/LSP
7.3 Installing the multibay
The multibay can be equipped with a slimline DVD and a ServerView Local
Service Panel (LSP) or a ServerView Local Service Display (LSD).
Ê Open the server as described in the chapter "Preparation" on page 27.
Ê Remove the dummy cover from one 5.25-inch bay for accessible drives (see
figure 22 on page 54).
Ê Detach the EasyClick rails from the dummy cover by removing the four
screws on each side (see figure 23 on page 55).
V CAUTION!
Keep the dummy cover for future use. If you remove the multibay again
and do not replace it with a new drive, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire safety protection measures.
Installing LSP or LSD in the multibay

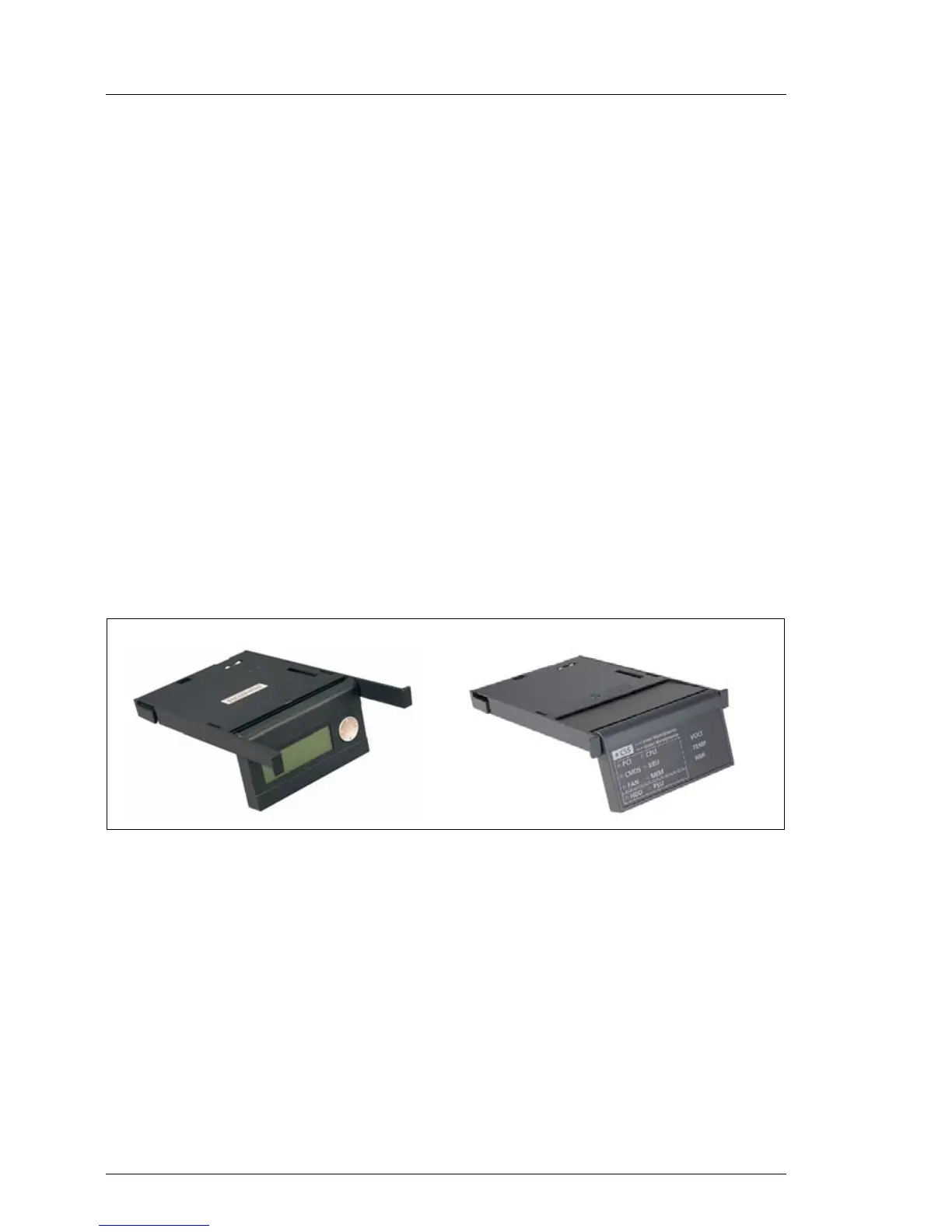

Figure 27: ServerView Local Service Display (LSD) and ServerView Local Service Panel (LSP)
