TX200 S6 Options Guide 57
Accessible drives and LSD/LSP

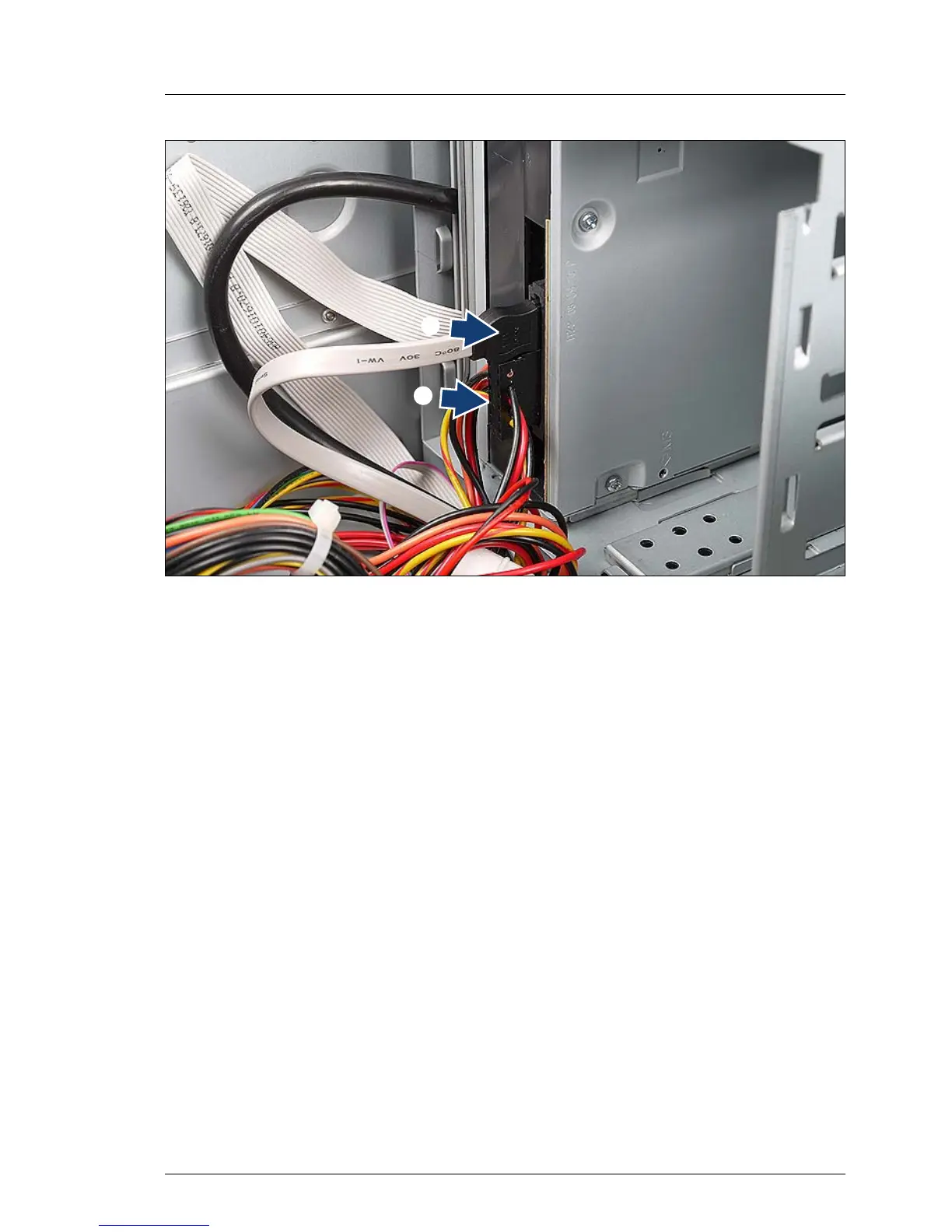

Figure 26: Routing the accessible drive - DVD example
Ê Connect the data cable (1) to the accessible drive (see the cabling plans in
the Appendix).
I The DVD SATA cable (T26139-Y3928-V205) is already pre-mounted
and connected to the SATA5 connector of the system board.
Ê Connect the power cable (2) to the accessible drive (see the cabling plans
in the Appendix).
Ê If necessary, connect the data cable to the system board or to a RAID
controller (see the cabling plans in the Appendix).
Ê Attach the front cover or rack front cover as described in the section
"Attaching the front cover" on page 109 or in the section "Attaching the rack
front cover" on page 111.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 107.
Ԙ
ԙ
