42 Options Guide TX200 S6
Processors
6.1 Installing a second processor
The system board can be upgraded with a second processor. The upgrade kit
consists of a processor and a heat sink.

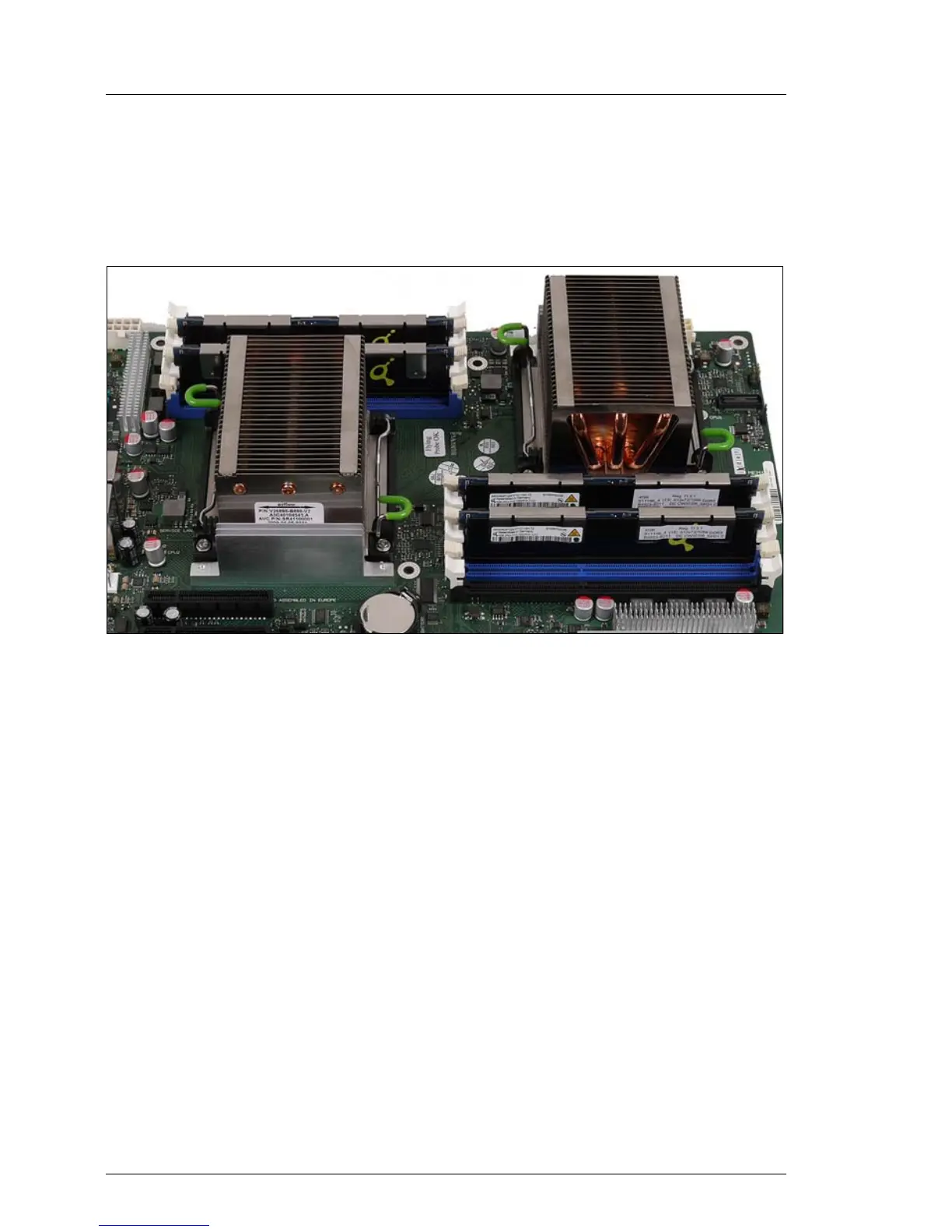

Figure 12: Configuration with two processors
V CAUTION!
Only processors of the same type may be used on the system board.
That means the number of the internal processor cores as well as the
primary clock and the FSB frequency have to be the same. For dual
operation, use a suitable multiprocessor operating system.
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter "Preparation" on page 27.
