TX200 S6 Options Guide 77
Expansion cards and BBU
8.2 Installing a BBU
Two different BBU fixations are available:
– BBU fixation 1: is used in servers equipped with a BBU carrier plate.
– BBU fixation 2: is used in servers equipped with shoulder screw caps.
V CAUTION!
● Do not connect the cable using excessive force, the connector is
weak.
● Follow the safety instructions in the chapter "Safety instructions" on
page 19.
8.2.1 Installing BBU (BBU fixation 1)
You can install up to two Battery Backup Units (BBU).
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter "Preparation" on page 27.

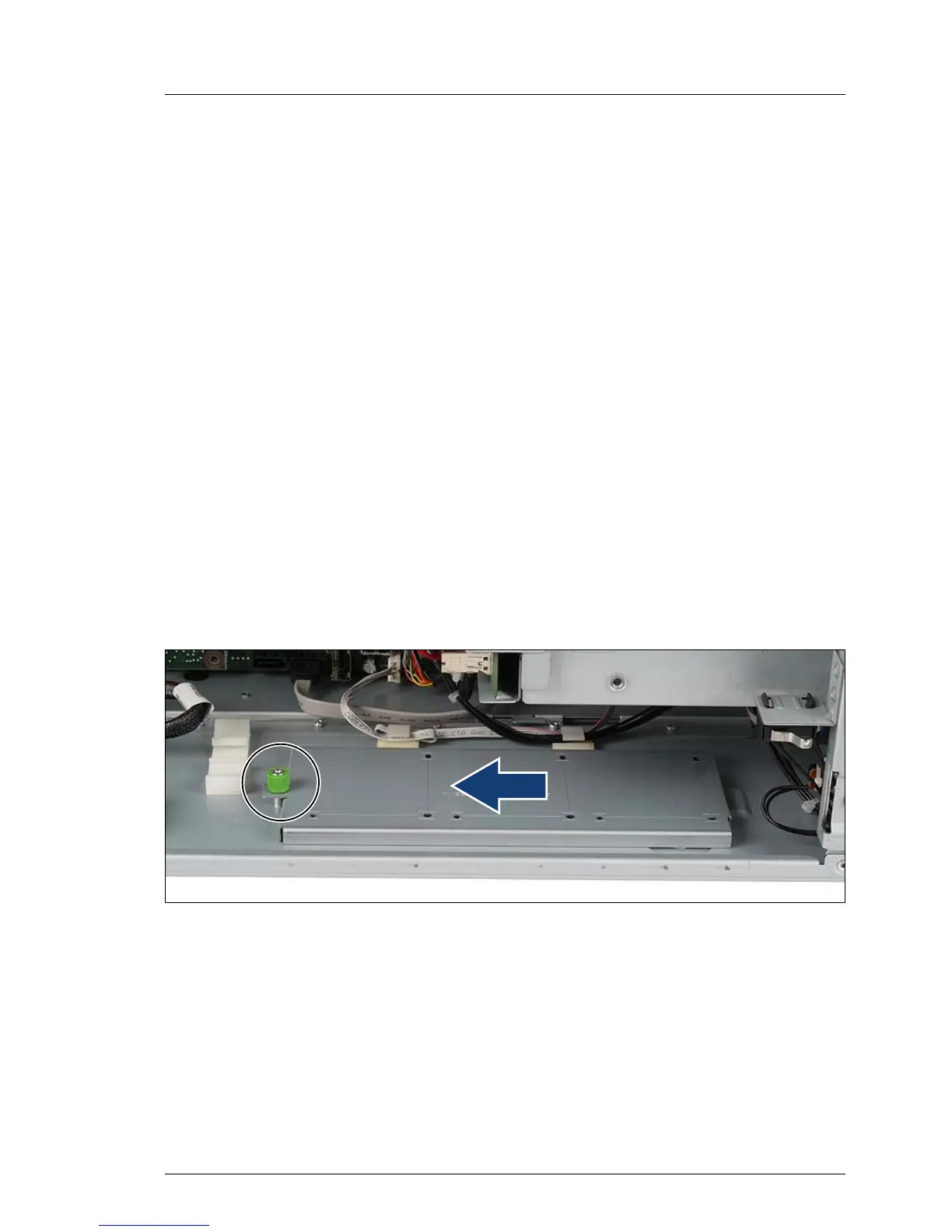

Figure 51: Removing the BBU carrier plate
Ê Loosen the knurled screw and remove the BBU carrier plate in the direction
of the arrow.
