78 Options Guide TX200 S6
Expansion cards and BBU

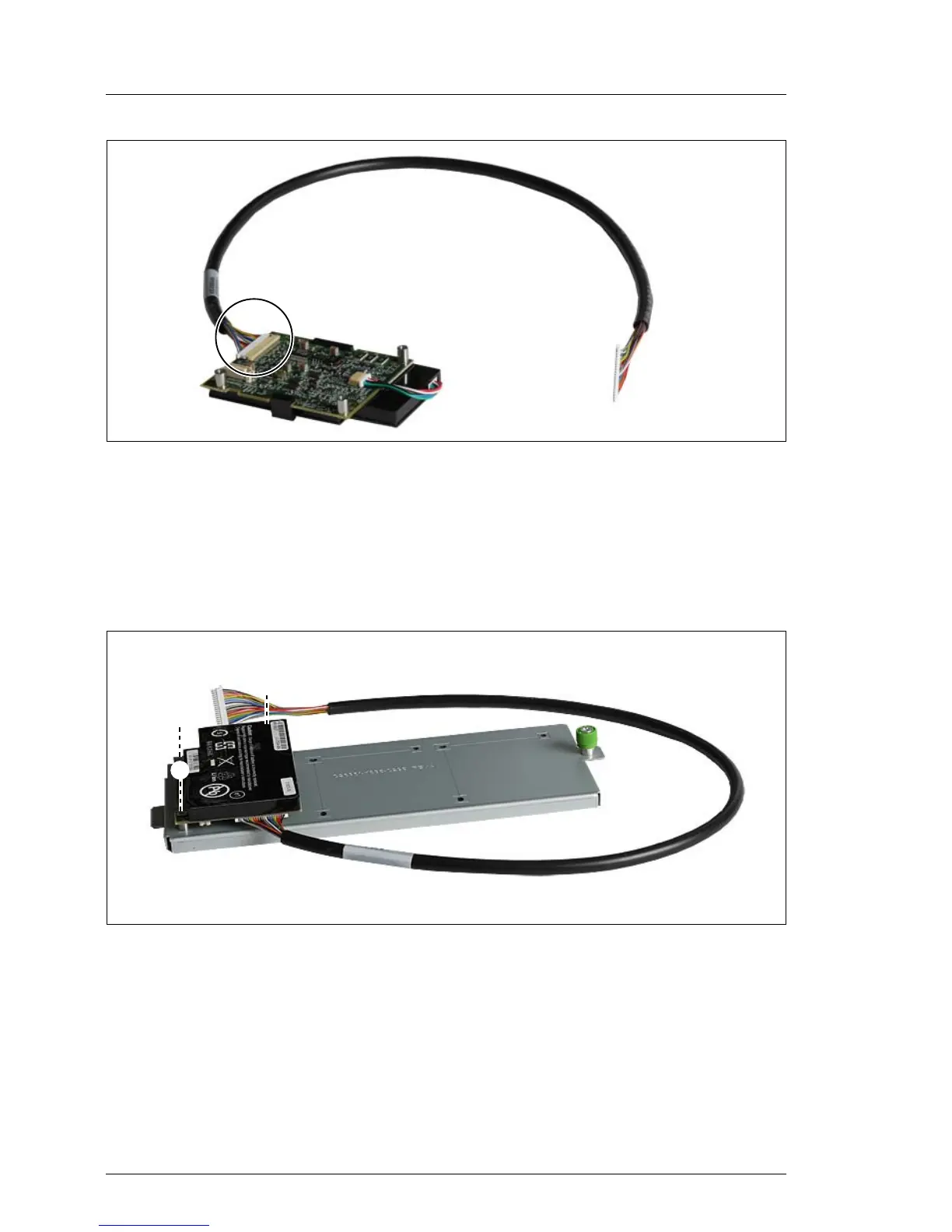

Figure 52: Connecting the cable to the BBU
Ê Connect the BBU cable to the BBU.
V CAUTION!
Make sure that the connector side with the blank pins is facing the board.
Otherwise you risk short-circuits.
Figure 53: Fastening the BBU onto the carrier plate
Ê Fasten the BBU onto the BBU carrier plate using the three screws supplied
(1).
Ԙ
Ԙ
Ԙ
