Fujitsu PRIMERGY TX200 S6

TX200 S6 Options Guide 79
Expansion cards and BBU

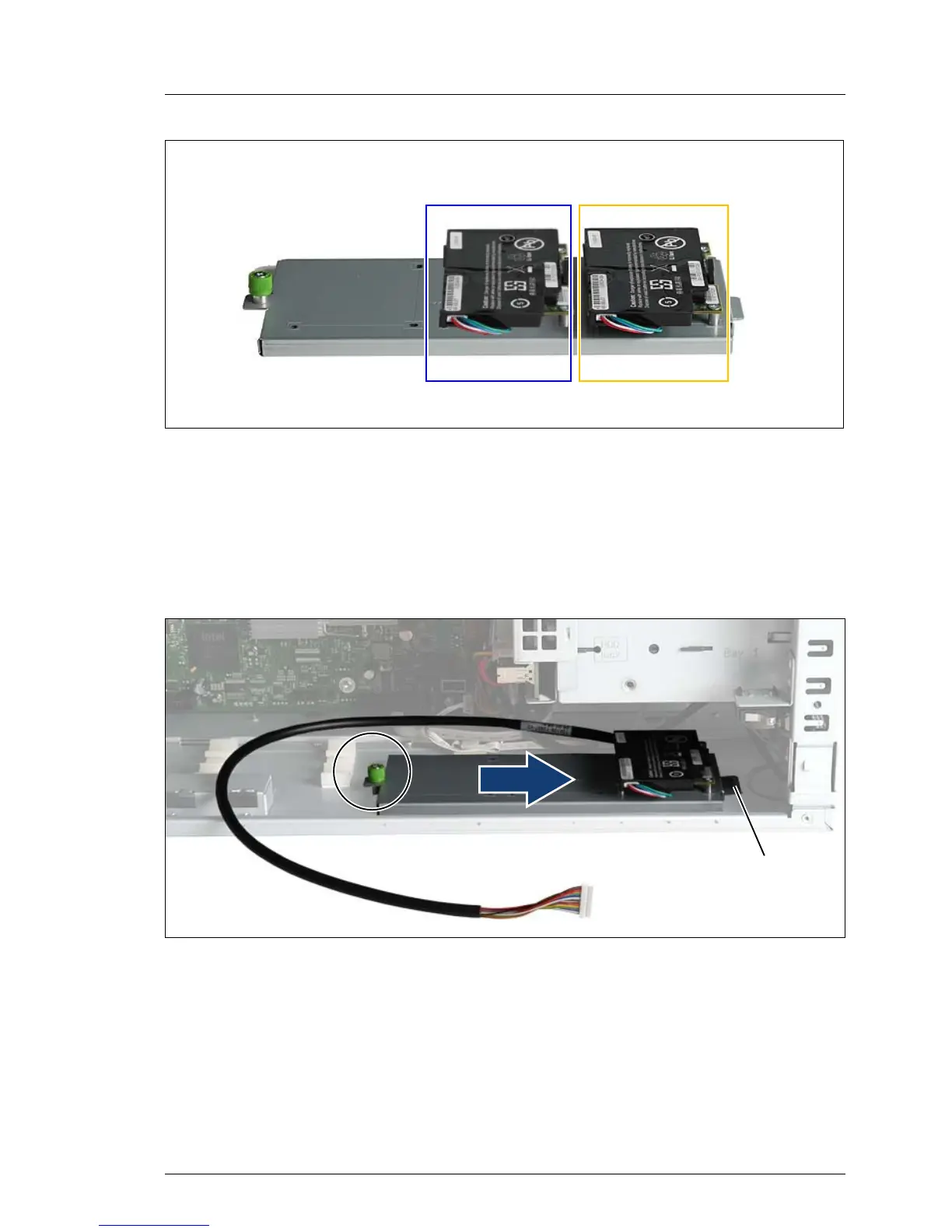

Figure 54: Fastening the second BBU onto the carrier plate
Ê In case of a configuration with two BBUs:
Ê Connect the BBU cable to the second BBU.
Ê Fasten the second BBU onto the BBU carrier plate using the three
screws supplied.
Figure 55: Installing the BBU carrier plate
Ê Push the BBU carrier plate into the housing bracket (A).
Ê Fasten the BBU carrier plate using the knurled screw.
BBU 1BBU 2
A
