Fujitsu PRIMERGY TX200 S6

56 Options Guide TX200 S6
Accessible drives and LSD/LSP
I Keep the remaining screws for future use. The different drives are
fastened using different screws.
Please use the screws which are provided with the packaging
contents of the tape drive.

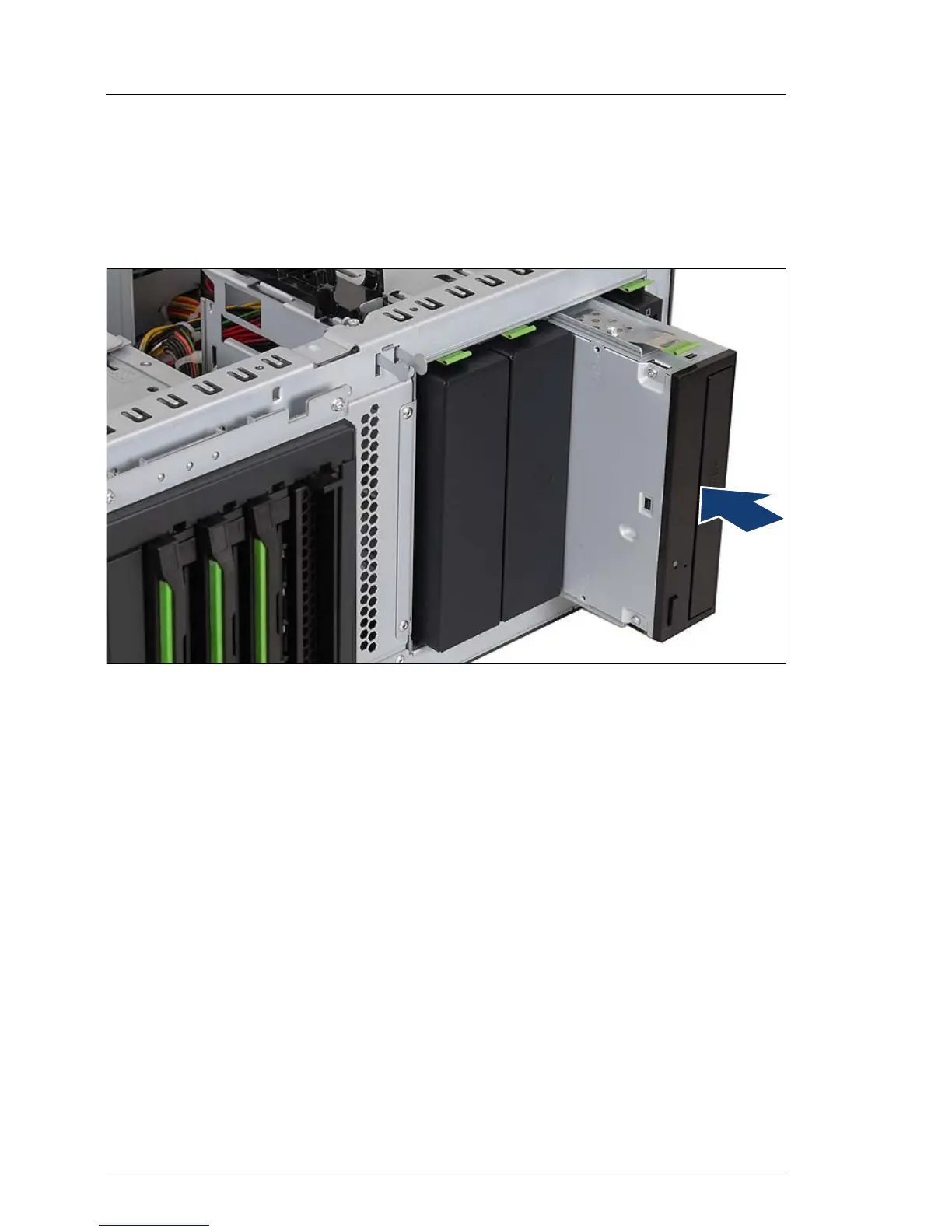

Figure 25: Inserting the accessible drive - example DVD drive
Ê Push the 5.25-inch drive fully into the bay until the EasyClick rails lock in
place.
