TX200 S6 Options Guide 113
Completion

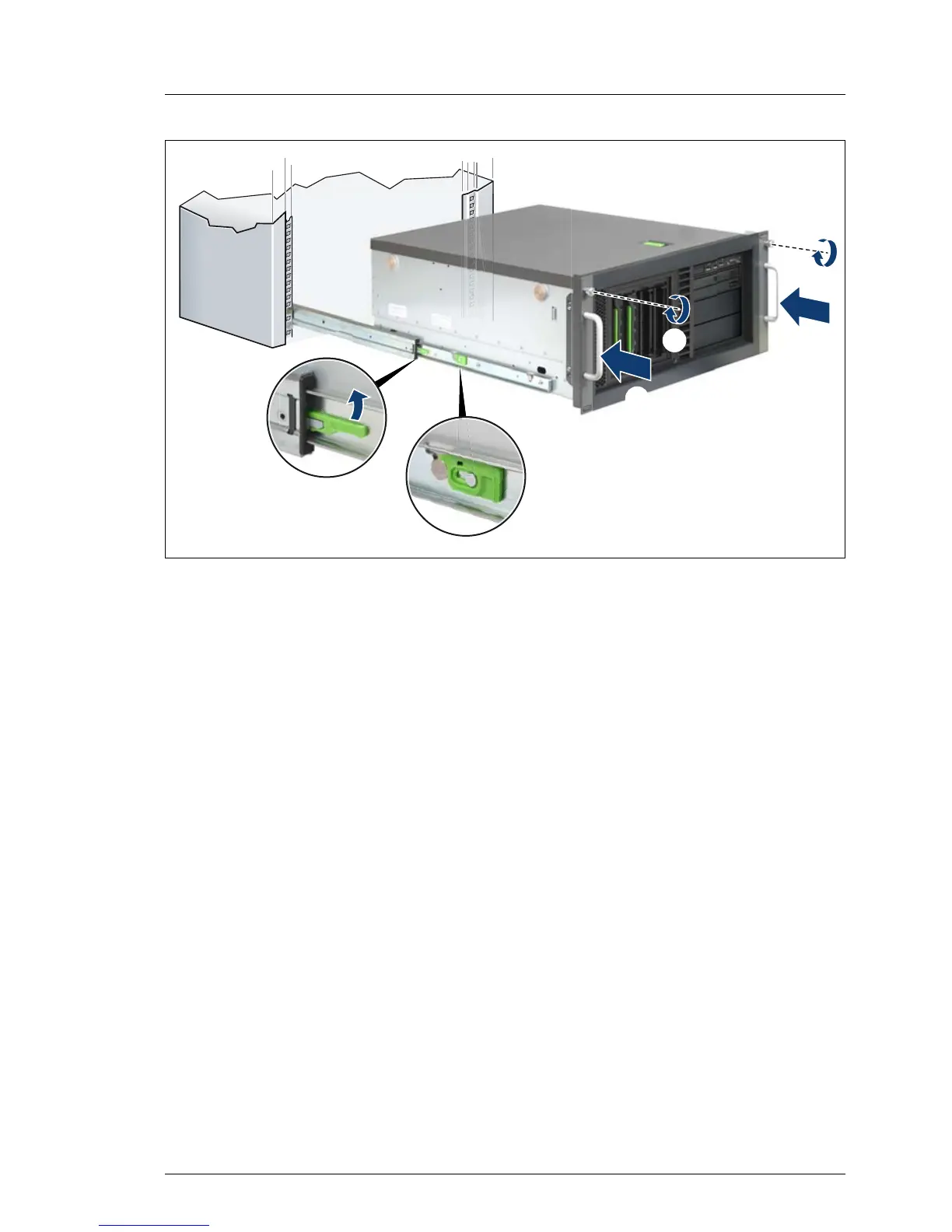

Figure 97: Inserting the server (b)
Ê Extend the telescopic rails completely to the front (1).
I They must click into place so that they can no longer be moved.
Ê Lower the server from above onto the projecting telescopic rails (2), (3). As
you do this, the locking bar (4) engages.
Ê Push the locking mechanism of both telescopic rails up (5).
Ê For a final function test, slide the server in and out twice. The rails should
move smoothly.
Ê Push the server as far as it will go into the rack (6).
Ê Fasten the server to the rack (7) using the two knurled screws (front panel).
Ê Connect all cables on the rear of the server.
Ê Connect all power plugs to the power outlets.
Ê Press the On/Off button to start up the server.
3
4
5
5
6
6
