Fujitsu PRIMERGY TX200 S6

88 Options Guide TX200 S6
Further options

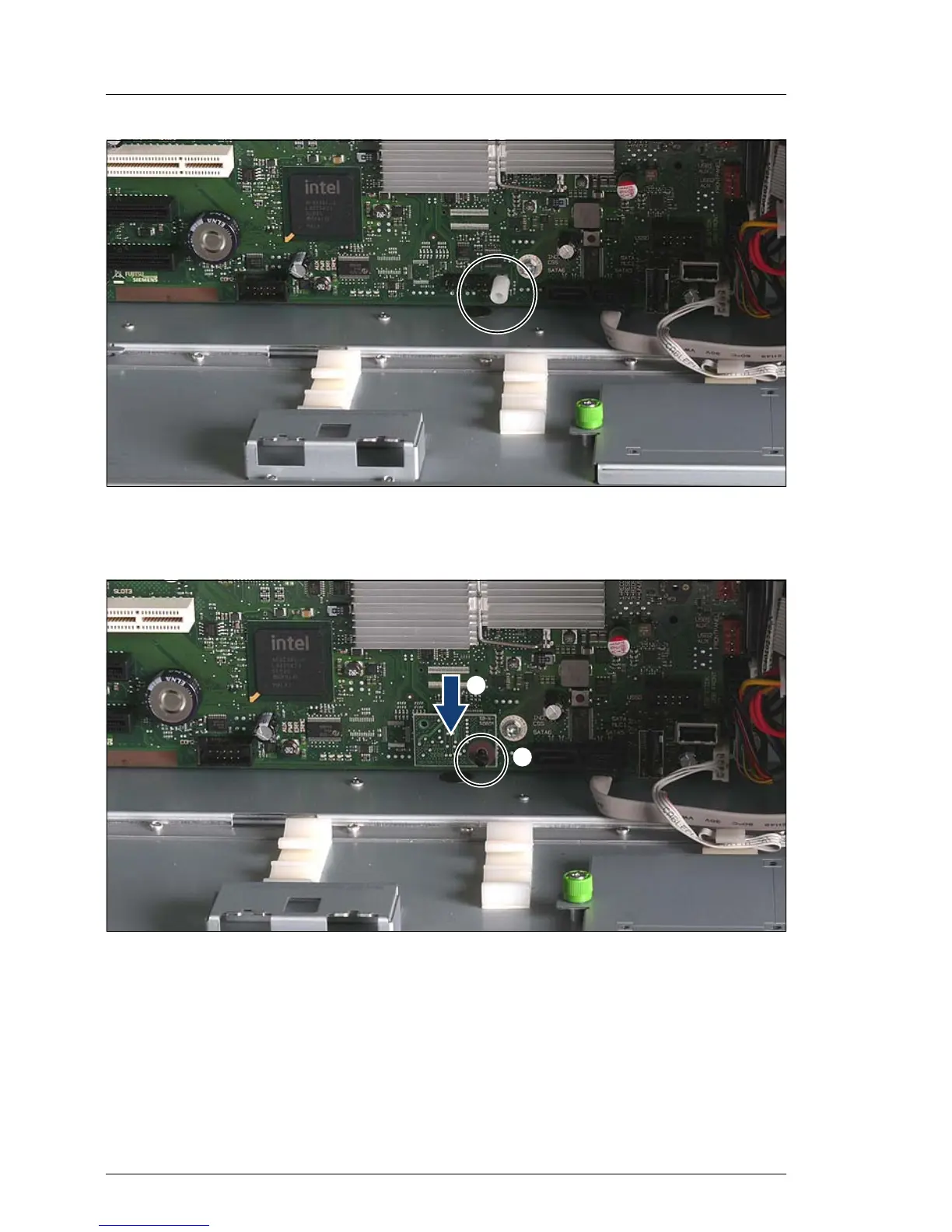

Figure 66: Inserting the TPM spacer on the system board
Ê Insert the TPM spacer into the hole on the system board.
Figure 67: Fastening the TPM
Ê Insert the TPM on the system board (1).
Ê Fasten the TPM with the special screw for the TPM (2).
Please use the TPM screwdriver insert bit to tighten the special screw.
I Do not fasten the screw too tightly (torque value of 0.6 Nm).
Ԙ
ԙ
