TX200 S6
Options Guide
95
Conversion to hot
-plug PS and redu
ndant system f
ans

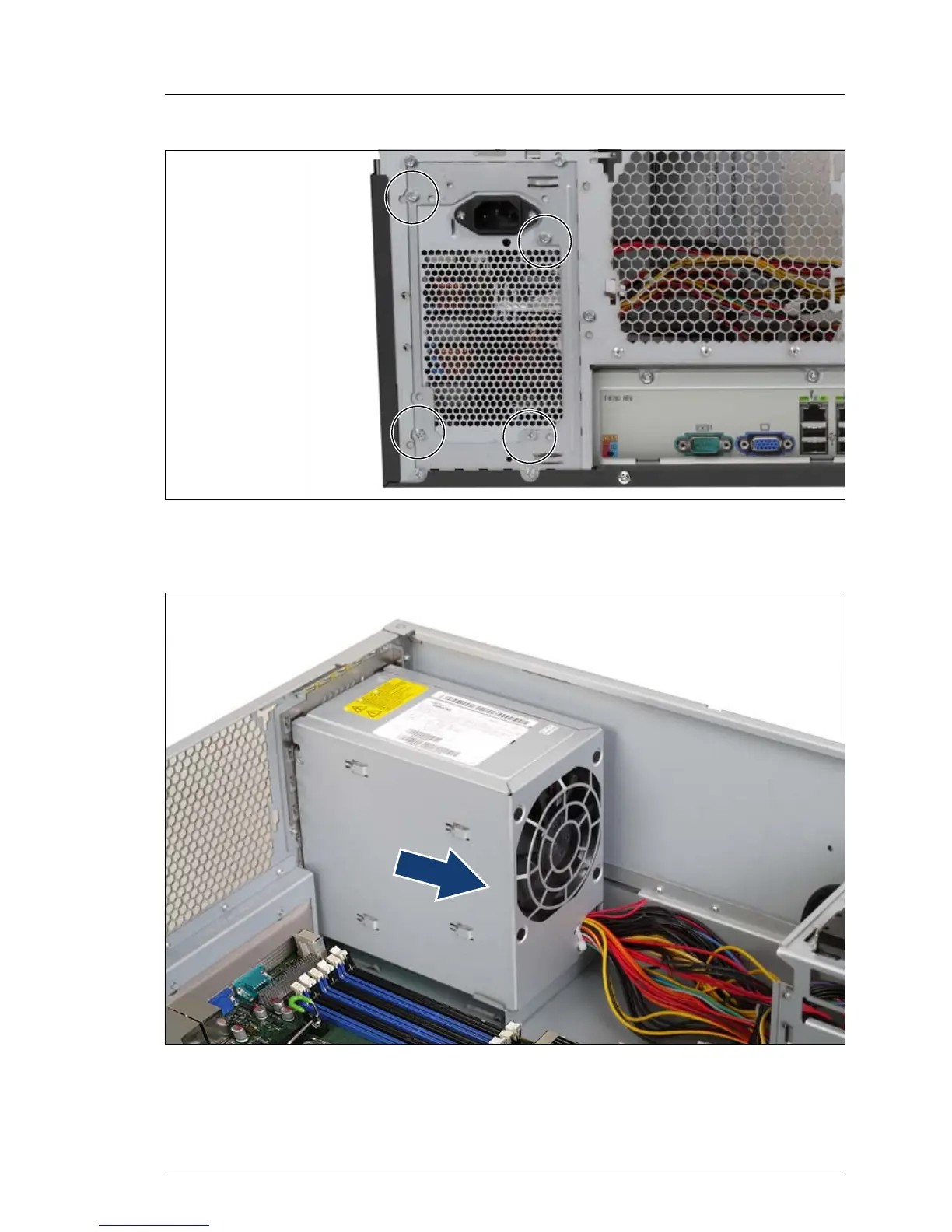

Figure 75: Power supply - Removing the screw
Ê
Remove the four screws
.
Figure 76: Removing
the PS
U
Ê
Pull the power supply unit inward and take it out of the s
erver
.
94
96
