TX200 S6 Options Guide 97
Conversion to hot-plug PS and redundant system fans

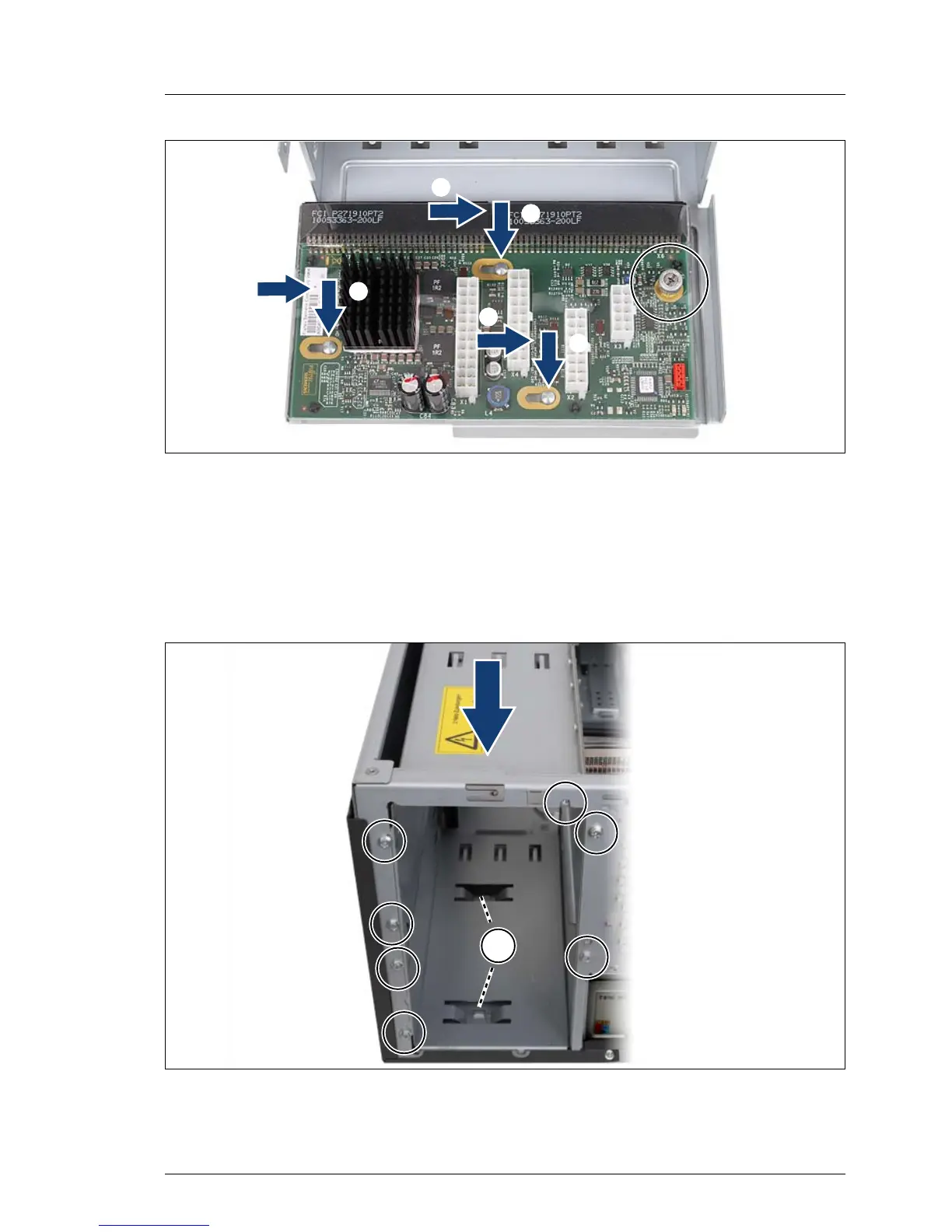

Figure 79: Installing the Power backplane in the PS cage
Ê Insert the Power backplane in the PS cage (1).
Ê Push the Power backplane in direction of the arrow (2) until it engages in the
guidances of the PS cage.
Ê Fasten the Power backplane with one screw (see circle).
Figure 80: Installing the PS cage
Ê Push the PS cage from the inside into the housing.
