Replacing the Pick Roller
442

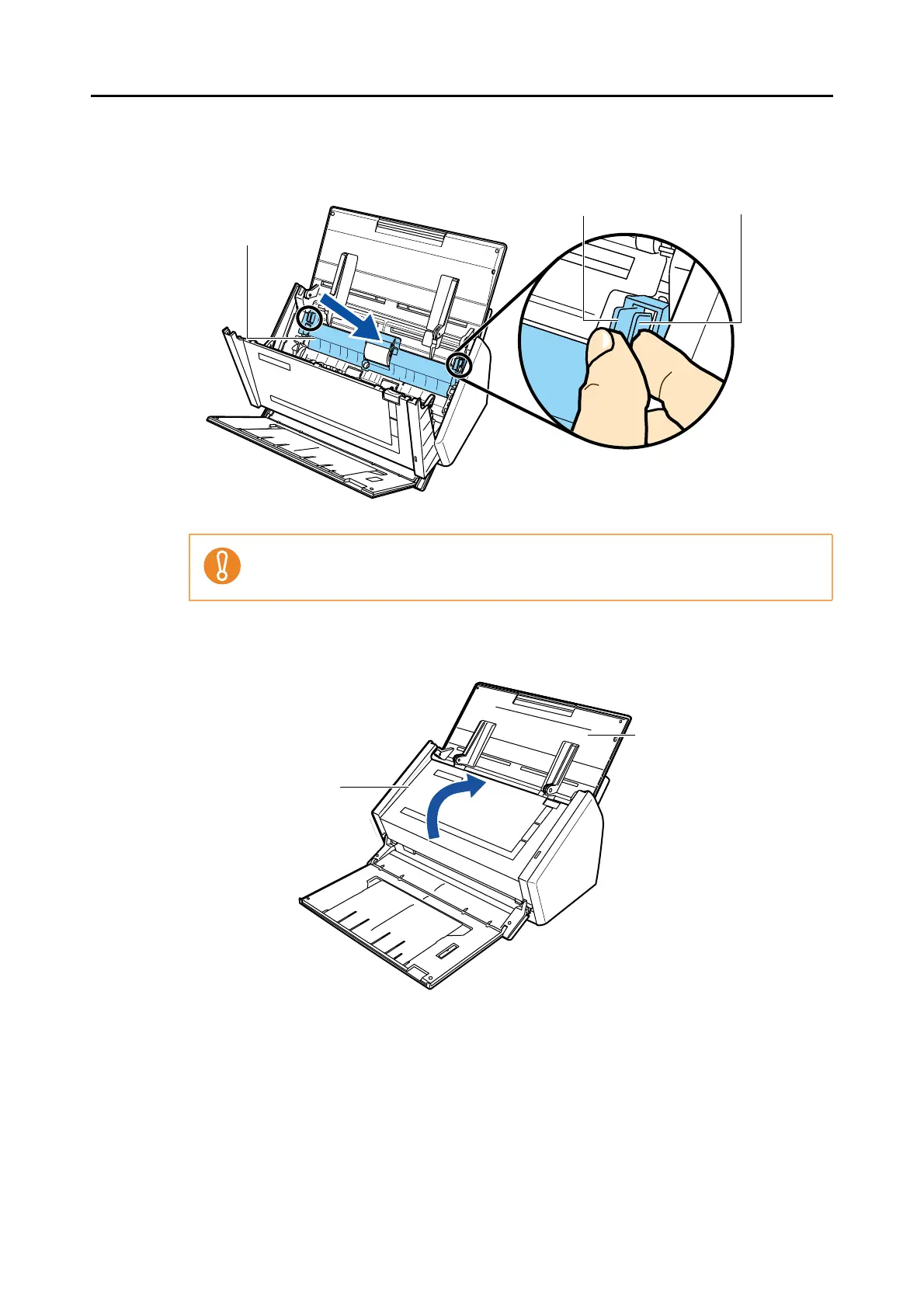

12.Attach the sheet guide.
Hold the pickup tabs on both ends, and attach the sheet guide.
D It clicks when the pickup tabs are released.
13.Close the ADF top section.
D It clicks when it returns to its original position.
14.Connect the power cable, and turn on the ScanSnap.
Confirm that the sheet guide is attached properly. Otherwise, paper jams or other feeding
errors may occur.
Sheet guide
Pickup tab
Pickup tab
ADF top section
ADF paper chute
