Fujitsu ScanSnap S1500M User Manual

Replacing the Pad Assy
433
Replacing the Pad Assy
Replace the pad assy in the following procedure.
1. Unplug the power cable from the ScanSnap.
2. Remove all documents from the ADF paper chute (cover).
3. Pull the ADF release catch to open the ADF top section.
4. Remove the pad assy.

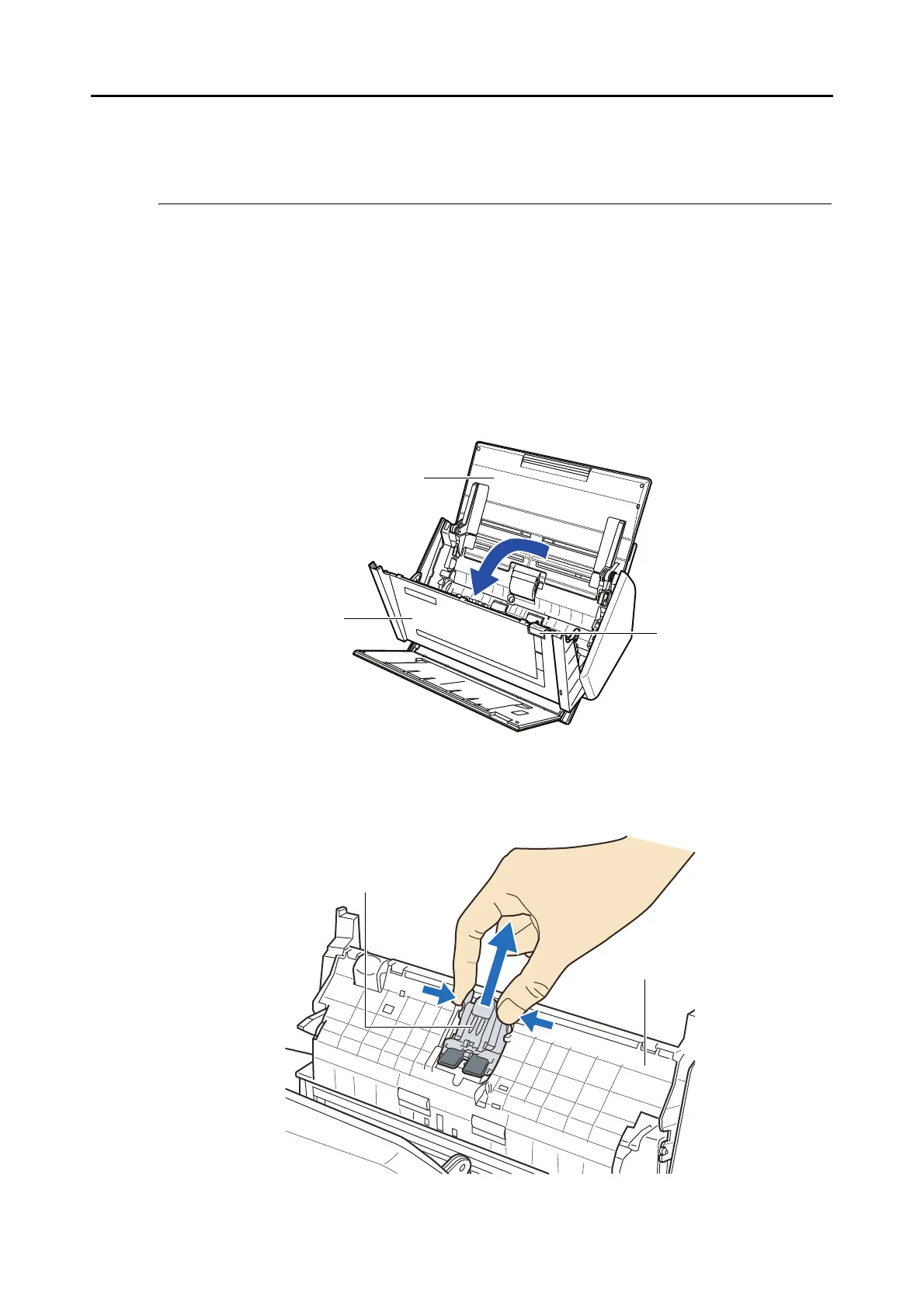

Squeeze both ends of the pad assy and pull it out in the direction of the arrow.
ADF release
catch
ADF top section
ADF paper chute (cover)
ADF top section
Pad assy
