Fujitsu SP-1120N User Manual

Clearing the Sheet Counters
When you have replaced a consumable part, clear the corresponding counter.
1 Start up the Software Operation Panel.
For details, refer to Starting Up the Software Operation Panel (page 120).

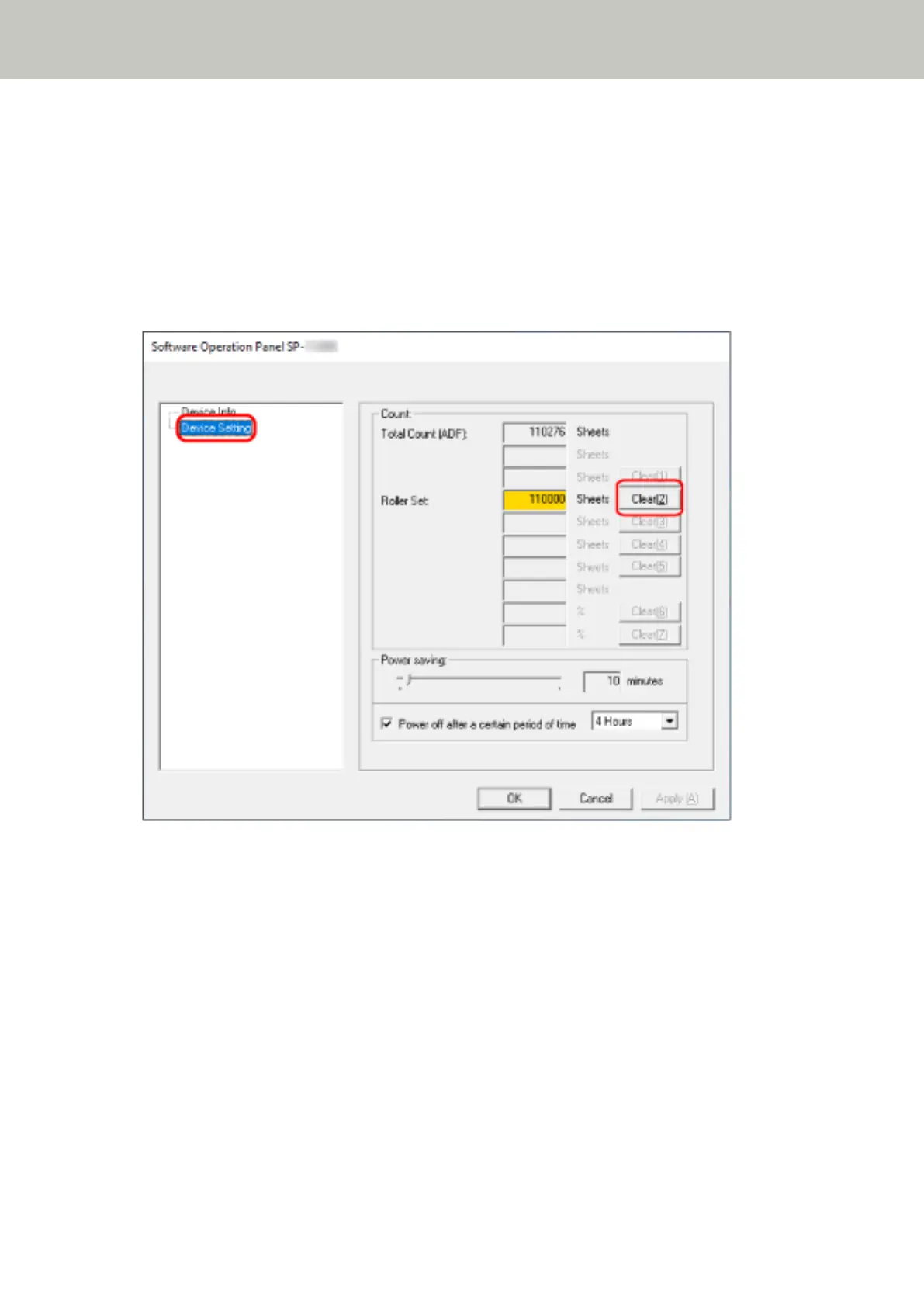

2 From the list on the left, select [Device Setting] and click the [Clear] button for the consumable that
you replaced.
The counter is reset to "0".
3 Click the [OK] button.
A message window appears.
4 Click the [OK] button.
The settings are saved.
Scanner Settings (Software Operation Panel)
137

Fujitsu SP-1120N Specifications

General

Optical Resolution	600 x 600 dpi
Maximum Document Size	A4
Scan Speed (Color, A4, 300 dpi)	20 ppm
Scan Speed (Mono, A4, 300 dpi)	20 ppm
ADF Capacity	50 sheets
Interface	USB 2.0
Scanning Method	CIS (Contact Image Sensor)
Color Depth	24-bit
Grayscale Depth	8-bit
Scanner Type	ADF (Automatic Document Feeder)
Scanning Speed	20 ppm (pages per minute)
Daily Duty Cycle	3000 pages
Supported OS	Windows
Dimensions	298 x 135 x 133 mm
